ASKO W4096R.W/3 Steel Seal™ Front-Loadding washing machine

General description

Product group: Washing Machine Installation: Freestanding Loading capacity: 9 kg Spin speed: 1600 rpm 23 programmes Energy class: A Main colour: White

Programs

• Cotton • Mix/synthetics • Wool/hand program • Universal • Dark wash • Bedding

• Time program • Auto • Quick • Heavy • Rinse • Spin • Drain • Easy care • Drum cleaning

• Jeans • Shirts • Hygiene • Quick Pro • Allergy program Cotton • Allergy synthetics program

• Steam refresh • Eco 40–60 °C

Options

• Adjustable spin speed: Adjustable spin speed

• Super Rinse™ - extra rinses added.

• Super wash

• High water level

• Prewash

• Anticrease function

Modes

• Normal mode, Green mode, Allergy mode, Speed mode, Intensive mode

Construction & Performance

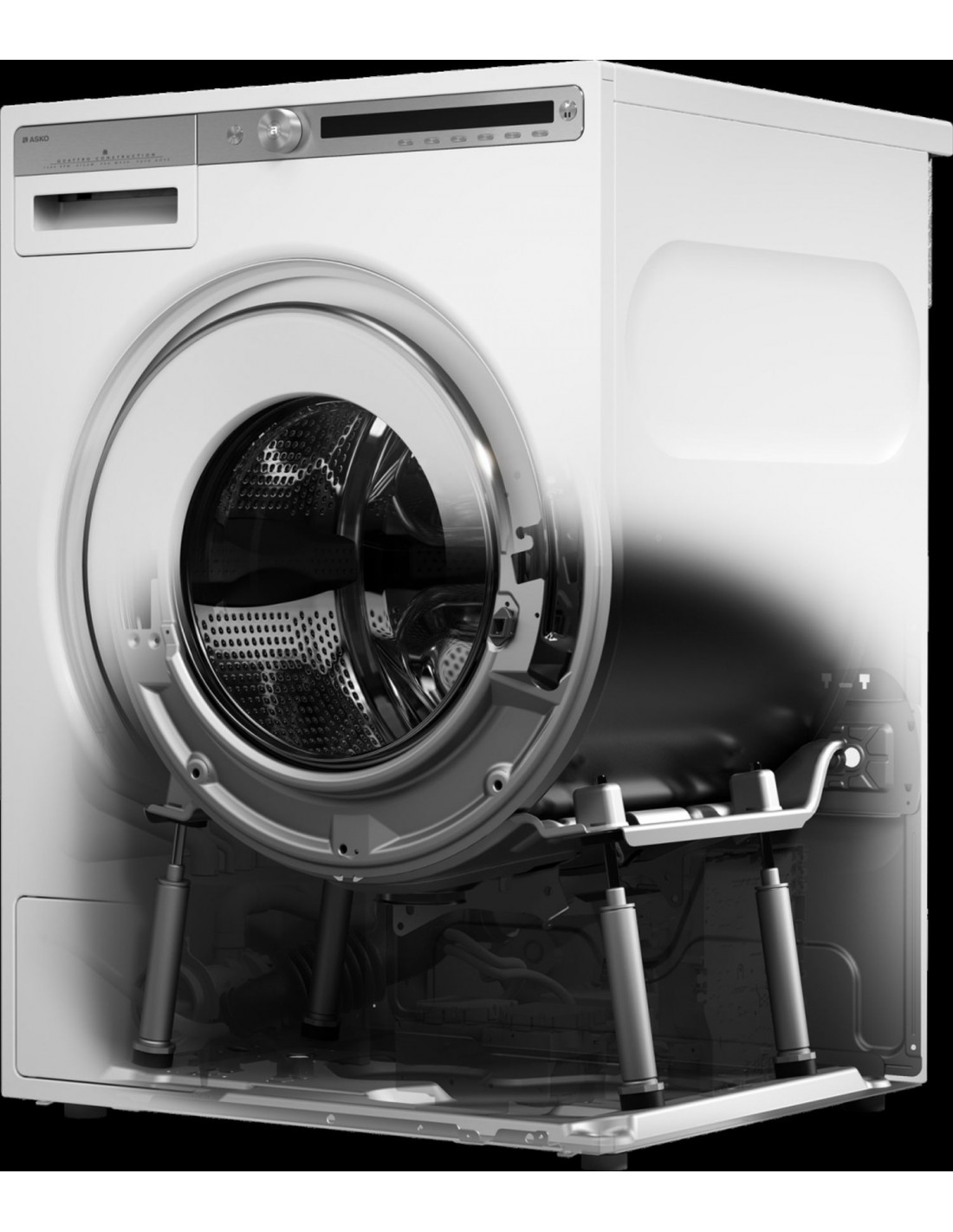

• Quattro Construction™ – vibration-free spinning

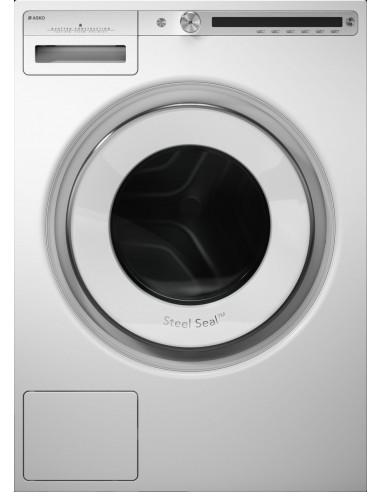

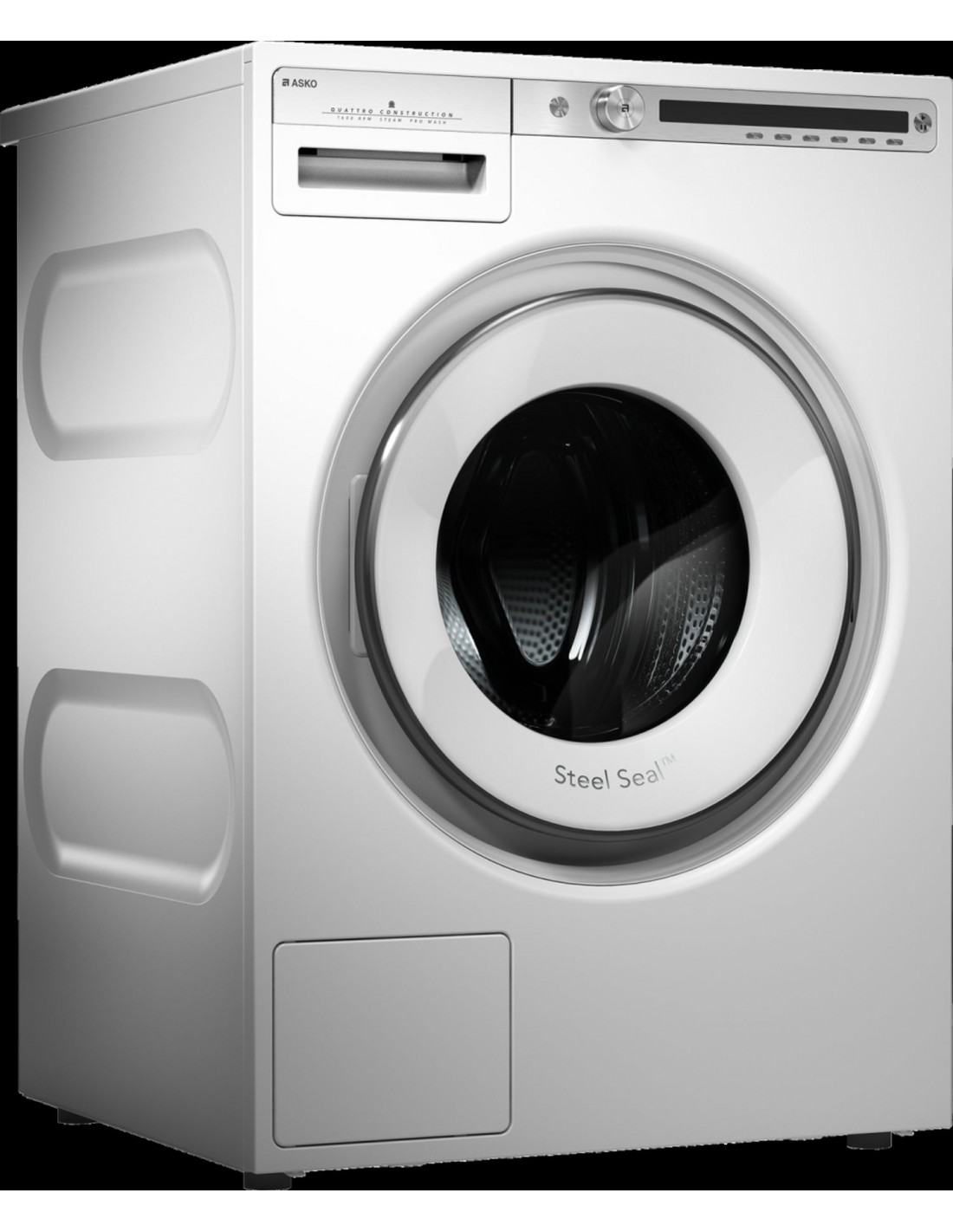

• Door: Steel Seal™ - hygienic door sealing

• Long lasting stainless steel drum

• Active Drum™ - for a careful yet effective wash cycle.

• Heater power: 2000 W

• Precise temperature control (max deviation: +/- 1 °C)

• Water level sensor

• Drum volume: 60 l

• Drum volume (USA): 2,1 cu ft

• Durable brushless motor

• Pro Wash system - extra effective washing and rinsing

Use & flexibility

• Easy close door

• Liquid detergent insert

• Temperature range: Cold-90°C

• Door diameter: 31 cm

• Door opening angle: 110 °1

• Dose assist

Interaction & Control

• Delayed Start

• Remaining time indicator

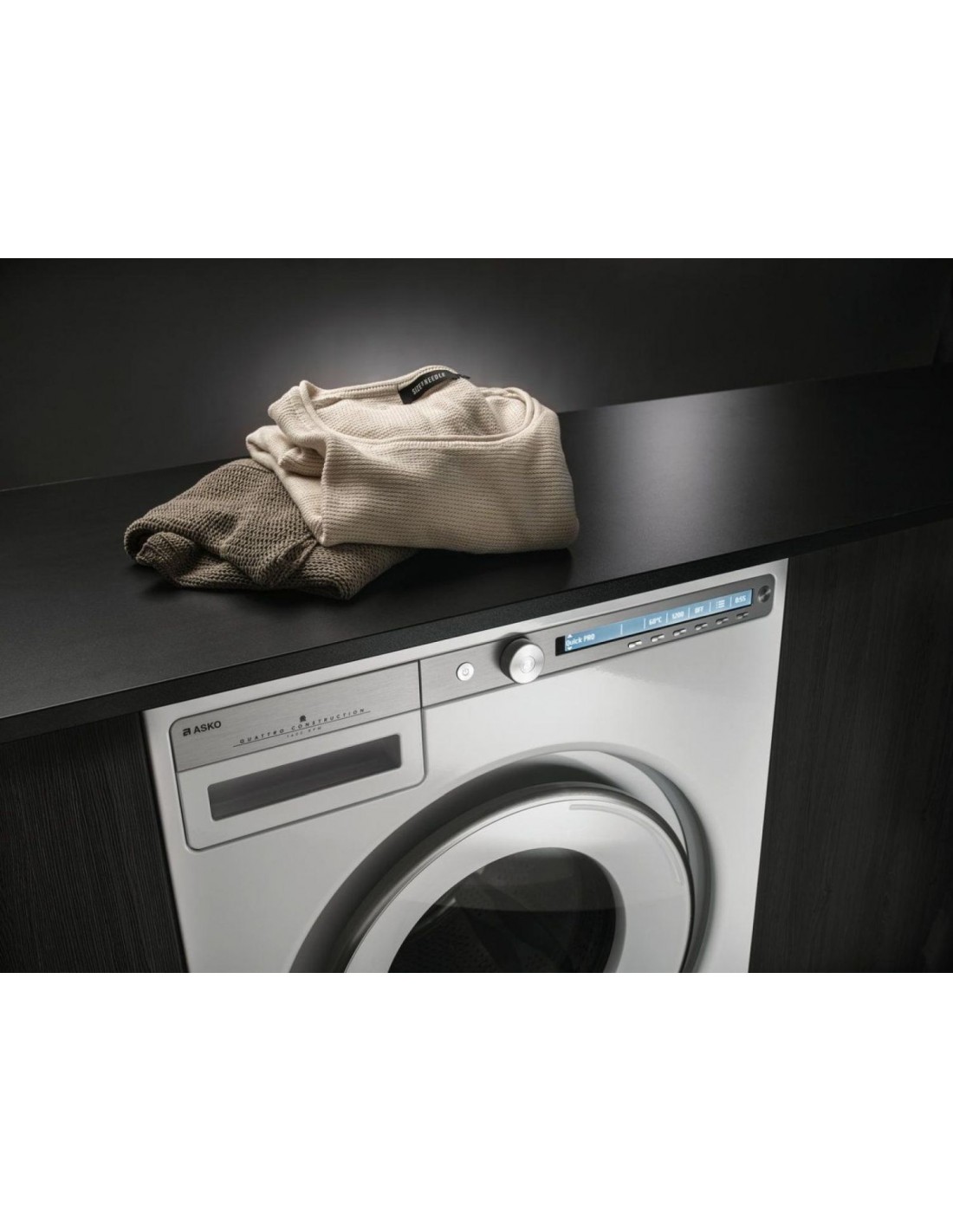

• Type of display: LCD display

• 23 programmes

• Available languages in control unit: CZ, DA, DE, EN, ES, EE, FI, FR, HR, IT, JP, LT, LV, NL, NO, PL, RU, SK, SL, SV, ZH, ZH-CN

Design & integration

• Door opening: Hinge on left side

• Adjustable feet: 10 mm

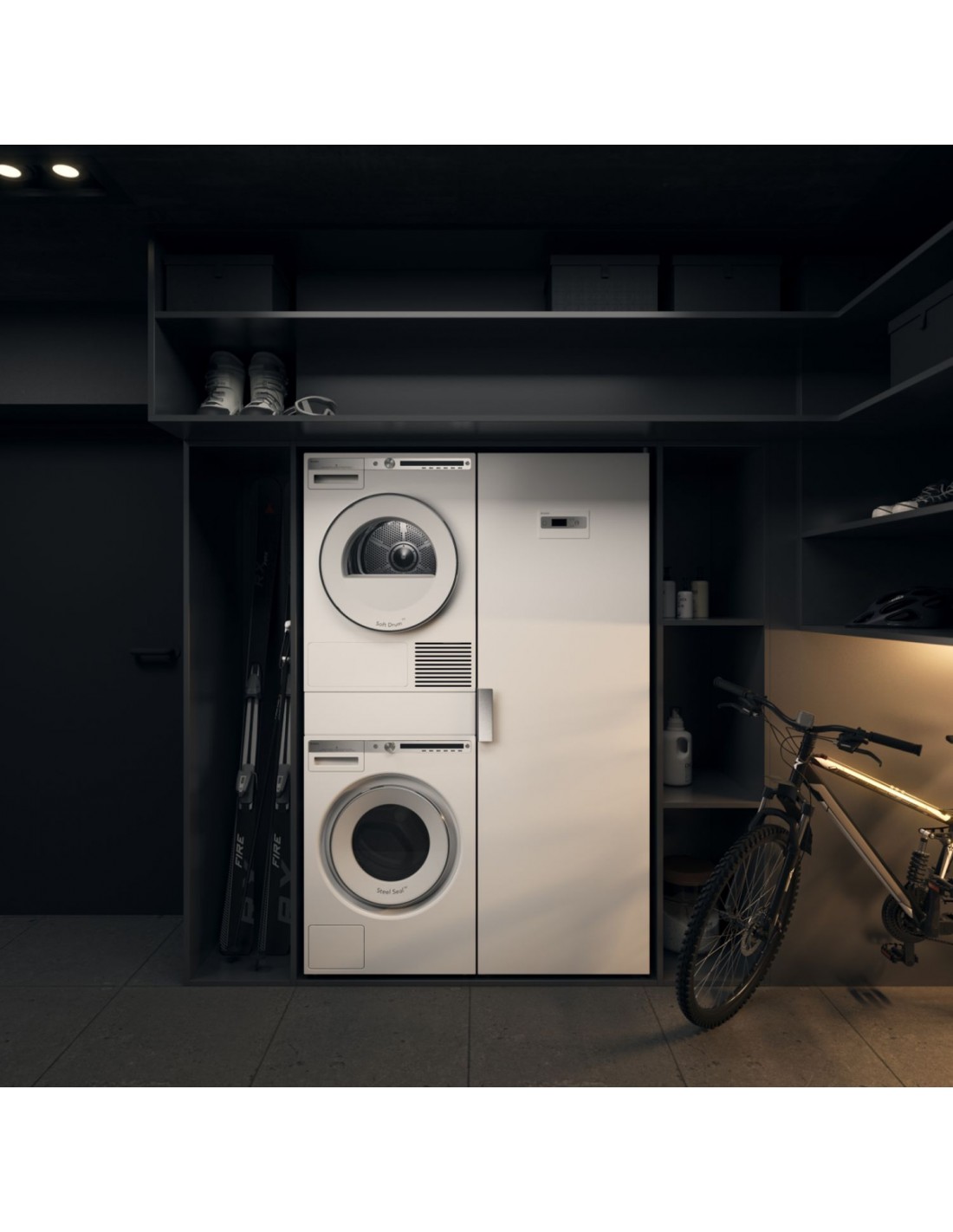

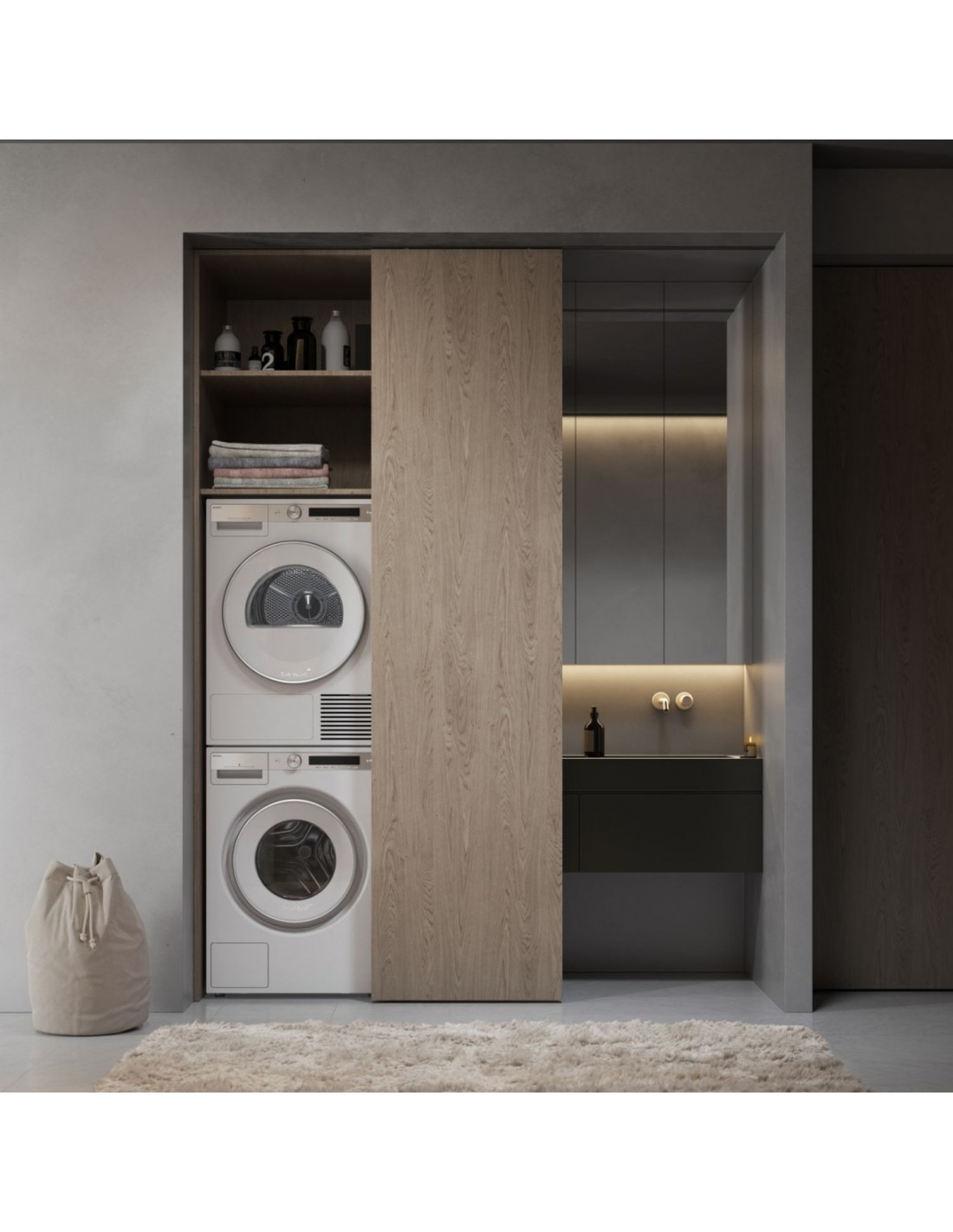

• ASKO tumble dryer can be mounted on top of the washer

• 3/4" Cold water connection

• Loading position: Front

Safety & Maintenance

• Removable lifters for easy cleaning

• Waterproof bottom plate

• Maximized water inlet time

• PEX inlet hose

• Anti Block™ - Self cleaning drain pump.

• Overflow protection

• Emergency door opening key

• Lockable control panel

• Unbalance detection - protects the washer against harmful vibrations.

• Draining capacity: 20 l/min

• Overheat protection

• Thermal and electonic protection against overheating

Technical data

• Spin drying efficiency class: A

• Moisture remaining: 44 / 44 / 44

• Heater power: 2000 W

• Drum volume: 60 l

• 3/4" Cold water connection

• Counter weight material: Cast iron

• Counter weight (kg): 10,4 kg

• Noise level spinning: 76 dB(A)re 1 pW

• Noise spinning class: B

• Energy consumption per 100 cycles: 49 kWh

• Energy consumption per cycle for the Eco program 40–60 °C: 0,493 kWh

• Water consumption per cycle for the Eco program 40–60 °C: 49 l

• Consumption in off mode: 0,3 W

• Consumption in standby mode: 0,3 W

• Energy class: A

• Connected load: 2200 W

• Number of phases: 1

• Fuse: 10 amp

• Frequency: 50 Hz

• Net weight: 76,5 kg

• ISO 14001

Dimensions

• Product dimensions (HxWxD): 85 × 59,5 × 58,5 cm

• Adjustable feet: 10 mm

• Depth with door open: 942 mm

• Length electrical cord: 2,1 m

• Length inlet hose: 150 cm

• Length outlet hose: 160 cm

Logistic information

• Dimensions of packed product (HxWxD): 92 × 64 × 66,1 cm

• Gross weight: 79,7 kg

• Product code: 741588

• EAN code: 3838782659072
