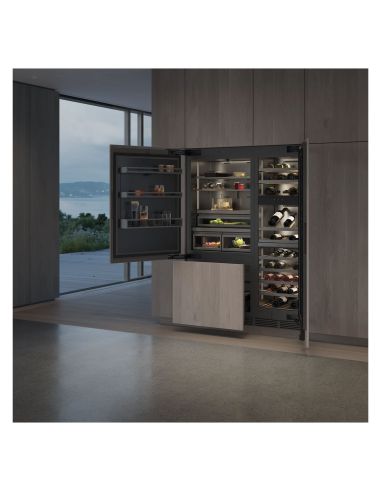

GAGGENAU RVB477190 Expressive Series 76,2cm Black Vario Integrated fridge-freezer combination

Vario Expressive Series Built-in Refrigerator with a freshness zone close to 0°C

Features:

• Useful capacity: 452L
• 2 safety glass shelves, white glass, individually adjustable in height.‎
• 1 shallow, fully extendable drawer

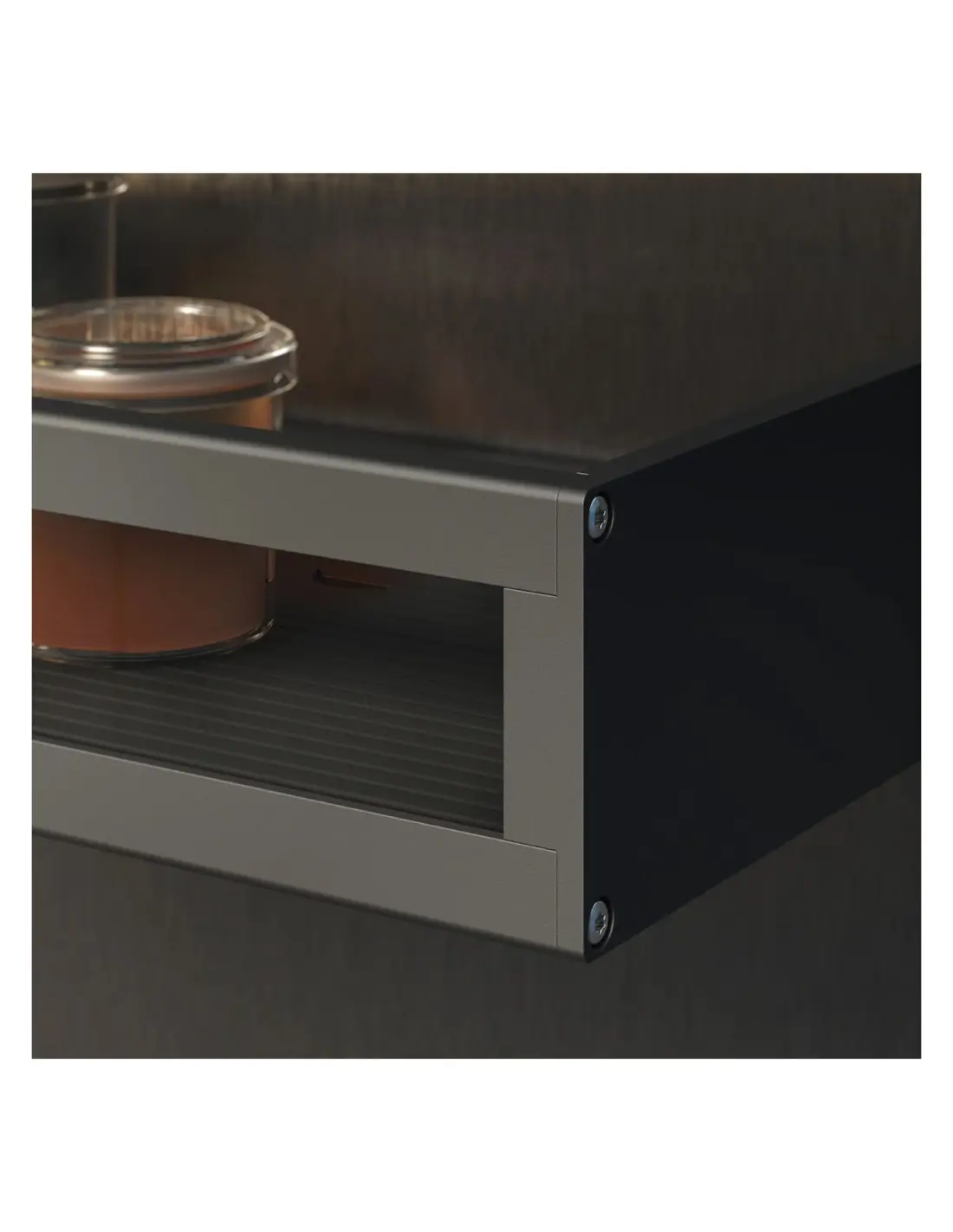

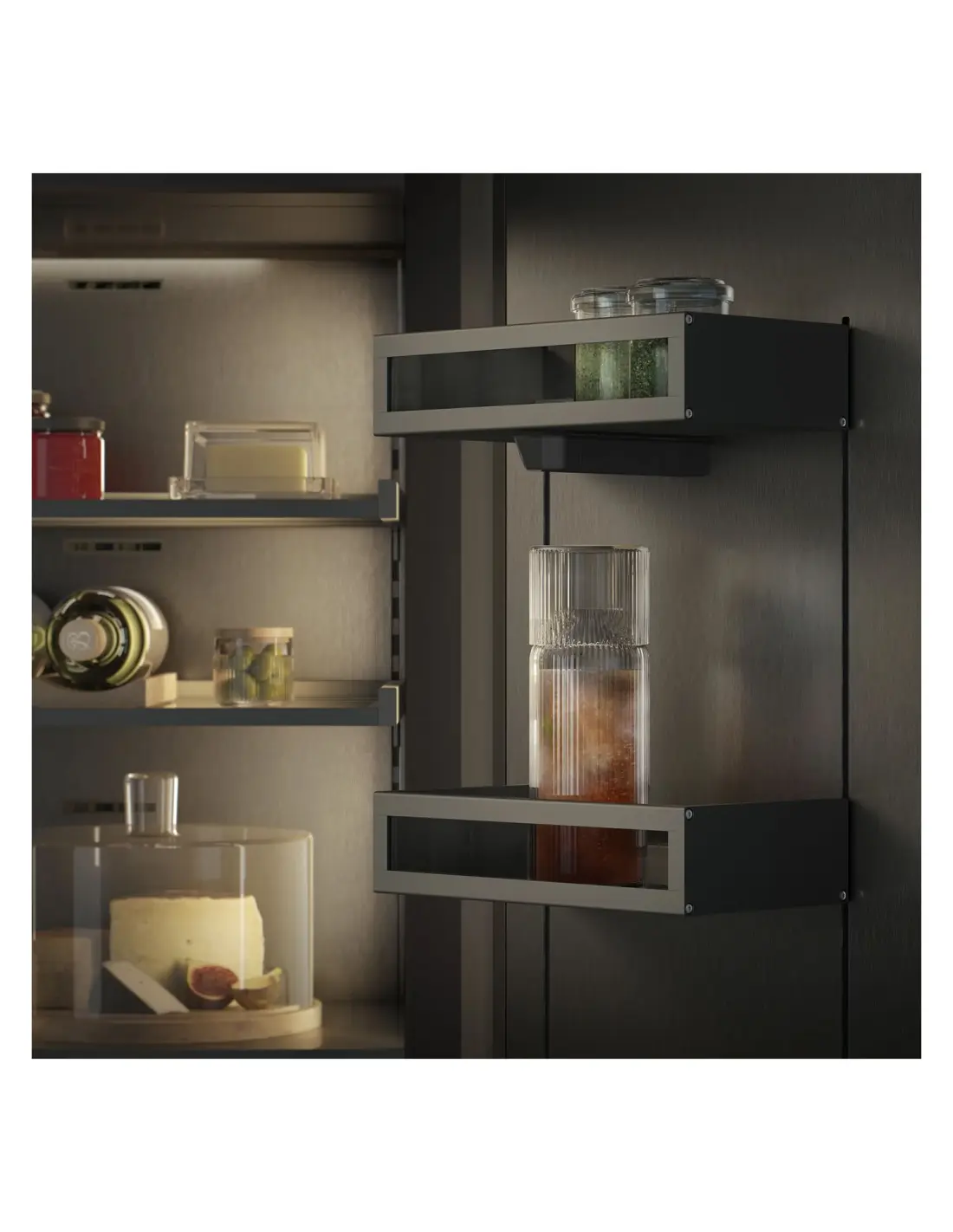

• Height-adjustable door shelves
• Stainless steel interior with dark anthracite anodized aluminum accents
• Warm white, glare-free LED lighting (4 LEDs)
• Dynamic cooling
• Automatic defrost with evaporation of defrost water
• No-Frost technology with rapid cooling function
• Temperature adjustment from +2°C to +8°C
• Activated charcoal air filter.
• Vacation mode
• Alarm system in case of improperly closed/opened door or appliance malfunction
• Built-in WiFi module (for use with the Home Connect app)
  Availability of Home Connect features depends on app availability in your country (not available in all countries).
• Practically invisible telescopic guide system for glass shelves and door shelves
• TFT touchscreen display

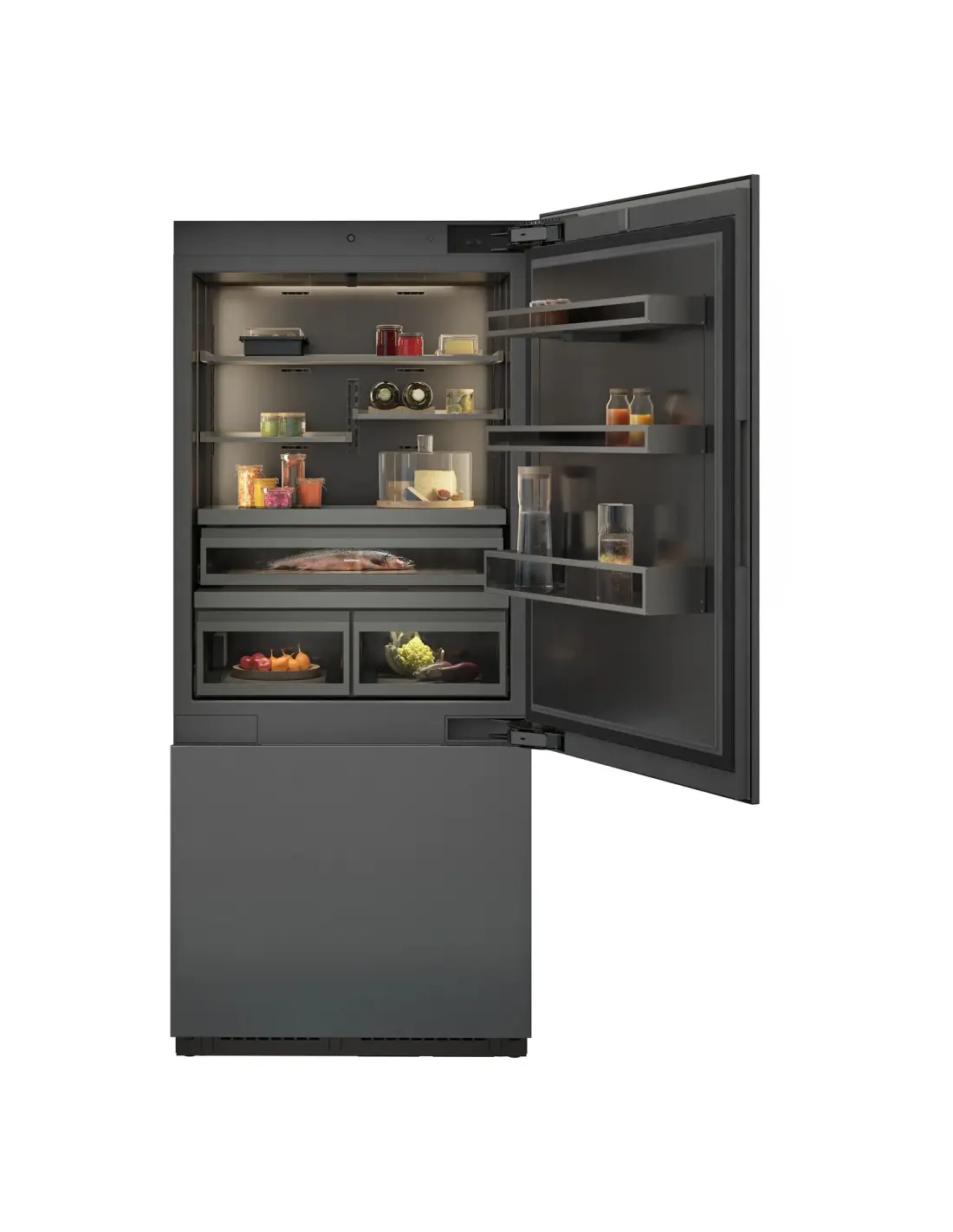

Refrigerator compartment

• Useable capacity: 316L
• 2 safety glass shelves, white glass, individually adjustable in height.‎
• 1 shallow, fully extendable drawer
• Door shelves, 3 height-adjustable drawers, one of which is deeper
• Stainless steel interior with dark anthracite anodized aluminum accents
• Warm white, glare-free LED lighting (4 LEDs)
• No-Frost technology with rapid cooling function
• Temperature adjustment from +2°C to +8°C

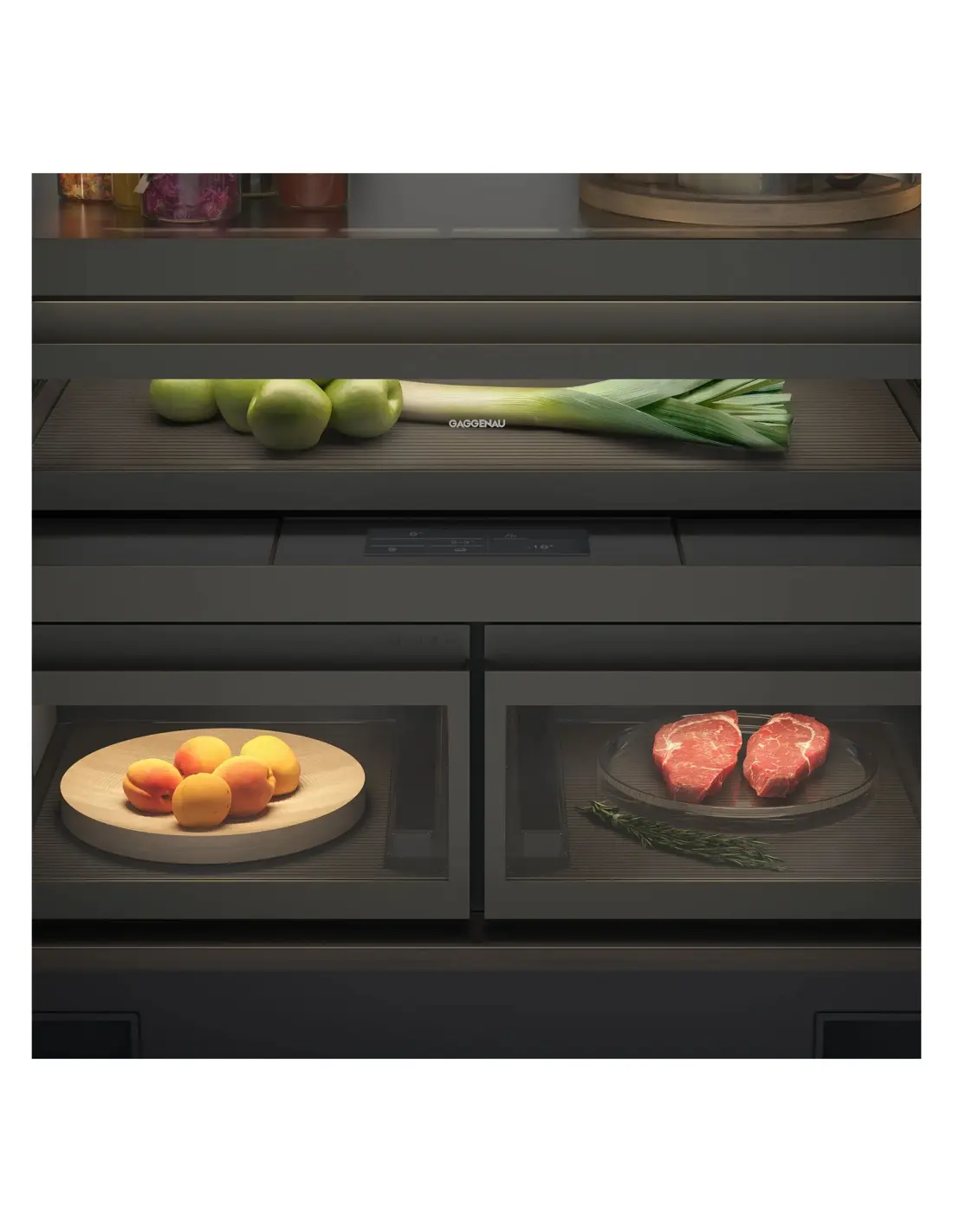

Fresh zone with a temperature close to 0°C

• 1 fully extendable "fresh cooling" drawer with a transparent, full-width front panel, illuminated
• Manual temperature adjustment
• Ideal for storing meat, fish, and poultry
• Useful capacity    liters

Fresh cooling compartment

• 1 fully extendable "fresh cooling" drawer with a transparent, full-width front panel, illuminated

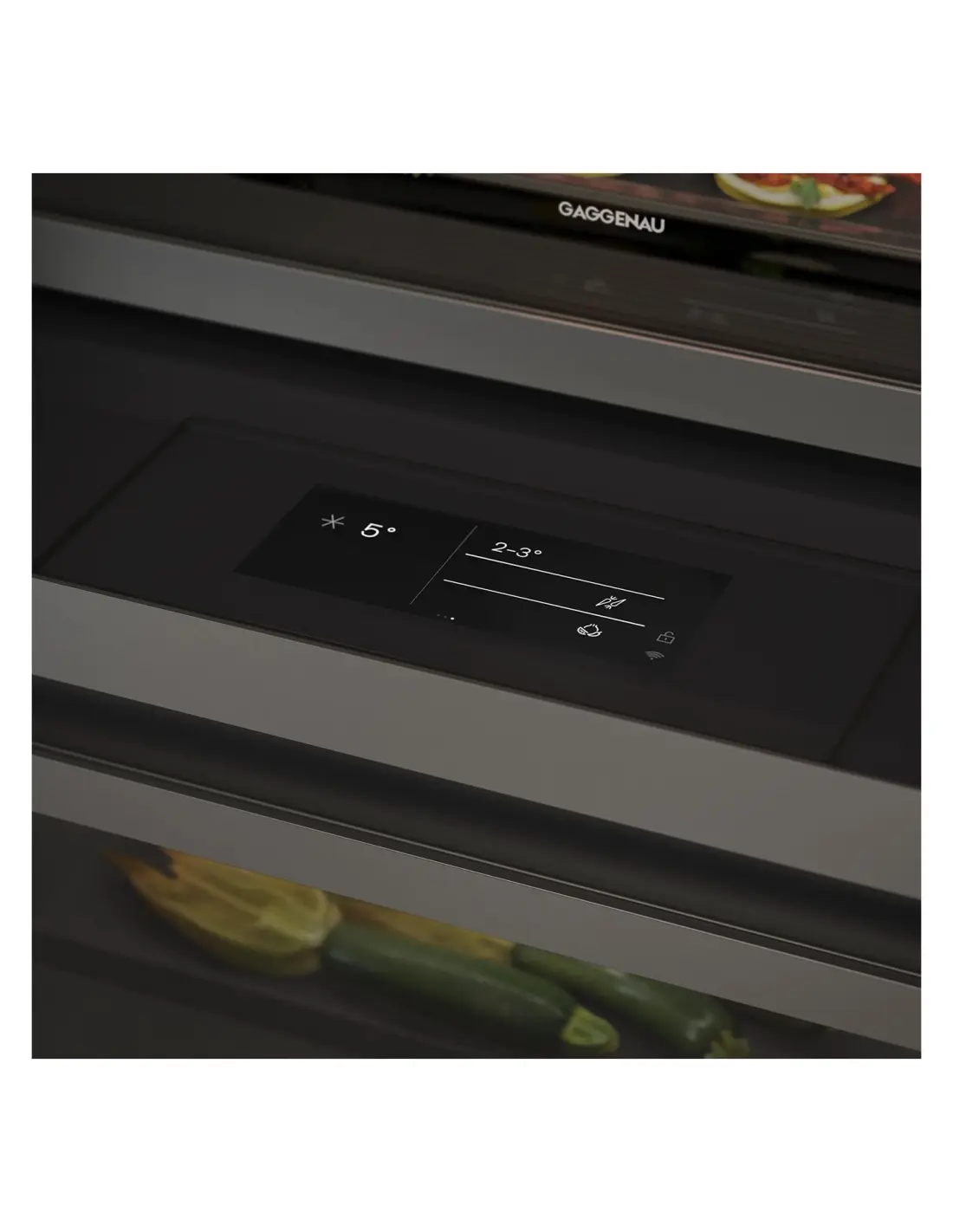

• Temperature adjustment in the "Fresh Cooling" compartment from -1°C to +3°C with TFT touchscreen display
• Manual humidity control
• Ideal conditions for storing fruits and vegetables

Freezing

• Volume 136 litres.‎
• No-frost technology with fast freezing at -30 °C.‎
• Temperature adjustable from -14 °C to -24 °C.‎
• 4-star freezer compartment.‎
• Freezing capacity 14 kg /24 h.‎
• Storage time after a malfunction 13 h.‎
• 2 fully extendable drawers, one of them inside.‎ Outer drawer with synchronously running pull-out rails.‎
• Interior lighting with 2 LED light spots, warm white light.‎
• Built-in ice maker with fixed water connection

Ice maker

• Integrated in the freezer compartment, with fixed inlet water connection.‎
• Particle filter for water inlet, integrated in ventilation grille area.‎
• Saturation indicator shown in TFT touch display.‎
• Can be switched off.‎
• Ice cube production approx.‎ 1.‎7 kg/24 h.‎
• Removable ice storage container with approx.‎ 3 kg capacity.‎

Operating data

• Energy efficiency class E at a range of energy efficiency classes from A to G.‎
• Connected power: 0.300 kW.
• Energy consumption 295 kWh/year.‎
• Noise level: 42 dB (re 1 pW).
• Flat hinge technology.
• Door hinge right, reversible.

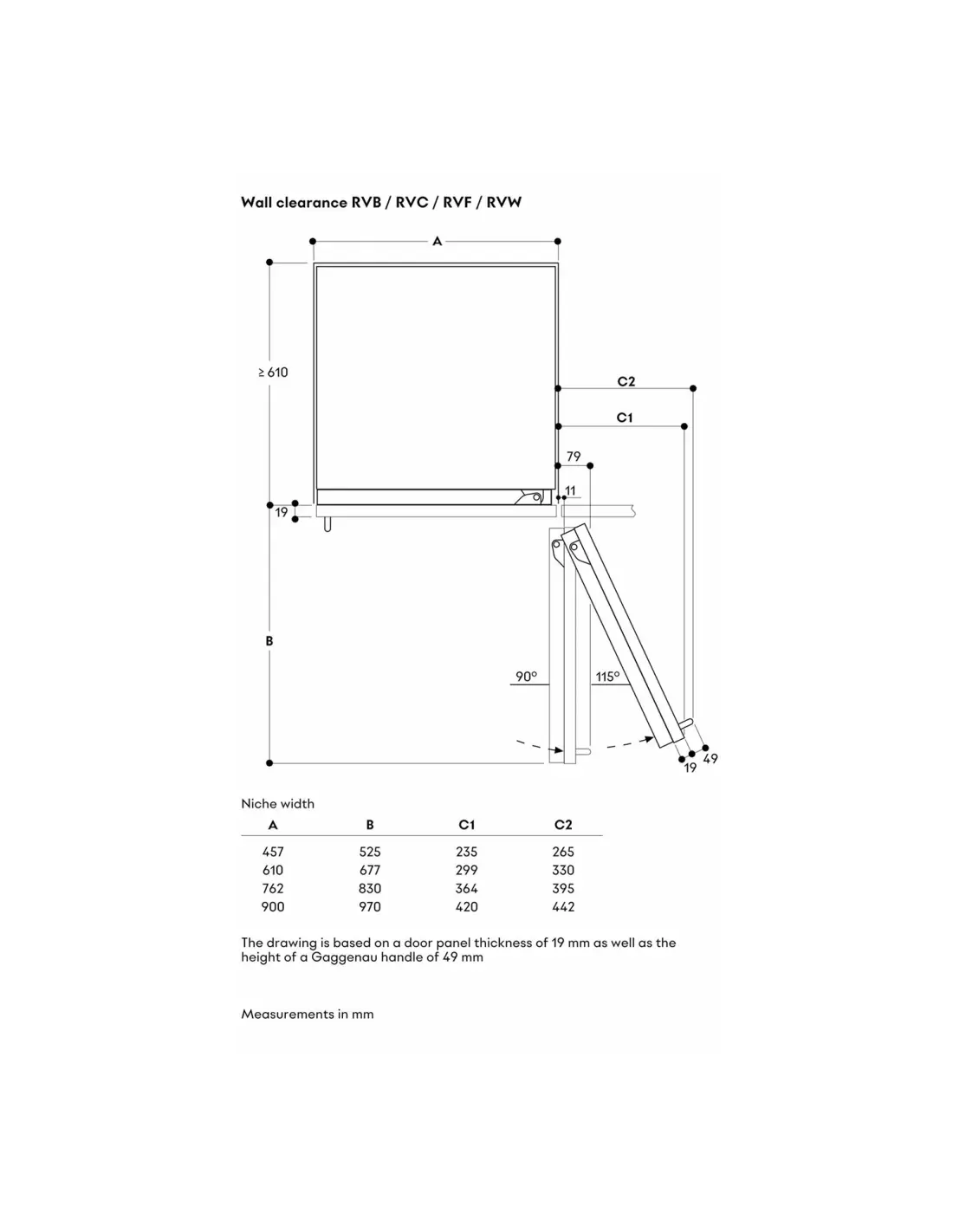

• The appliance door opening angle is 115°, and can be manually limited to 90°.
• 3.0 m connection cable with grounding plug.
• Net weight (kg): 203

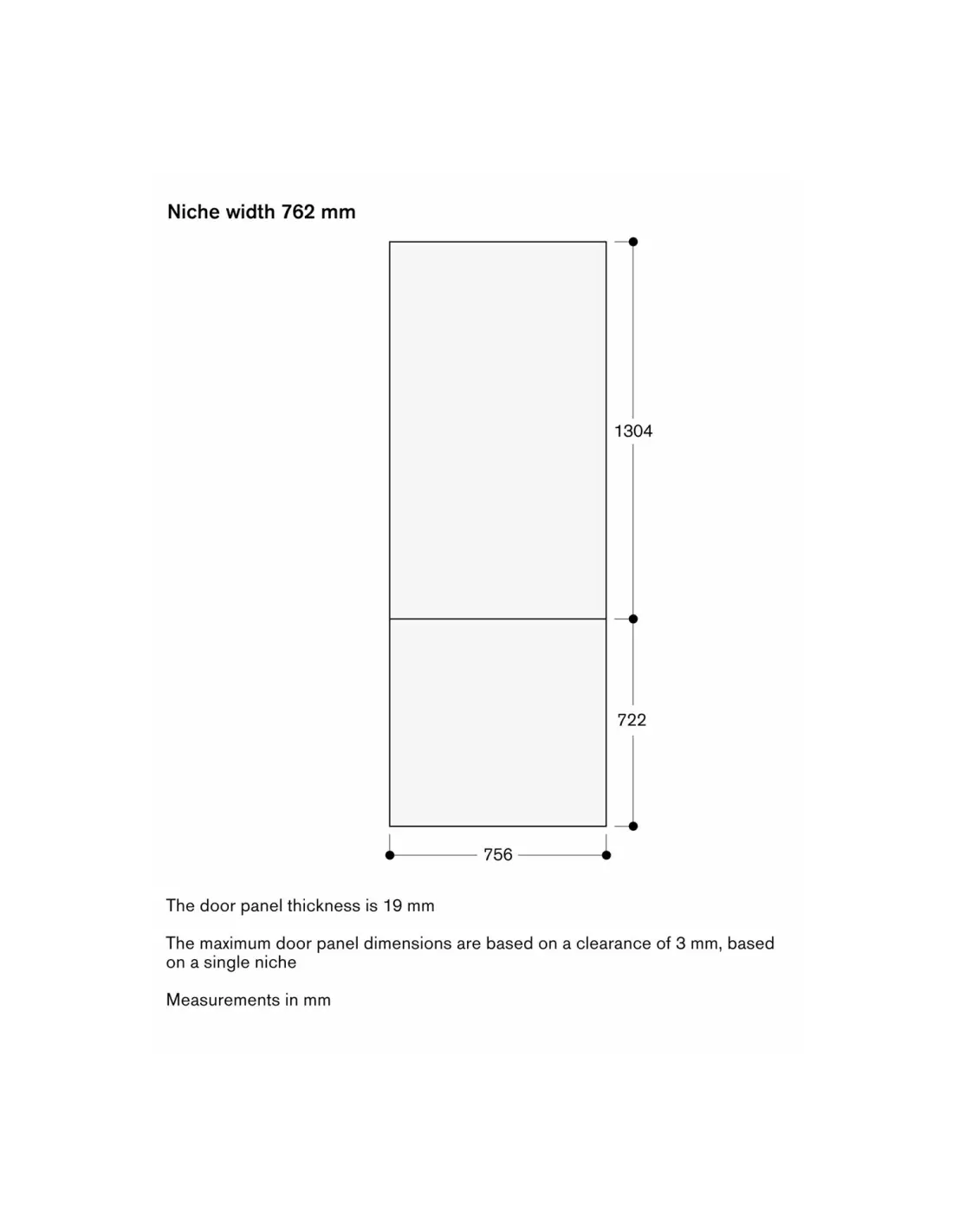

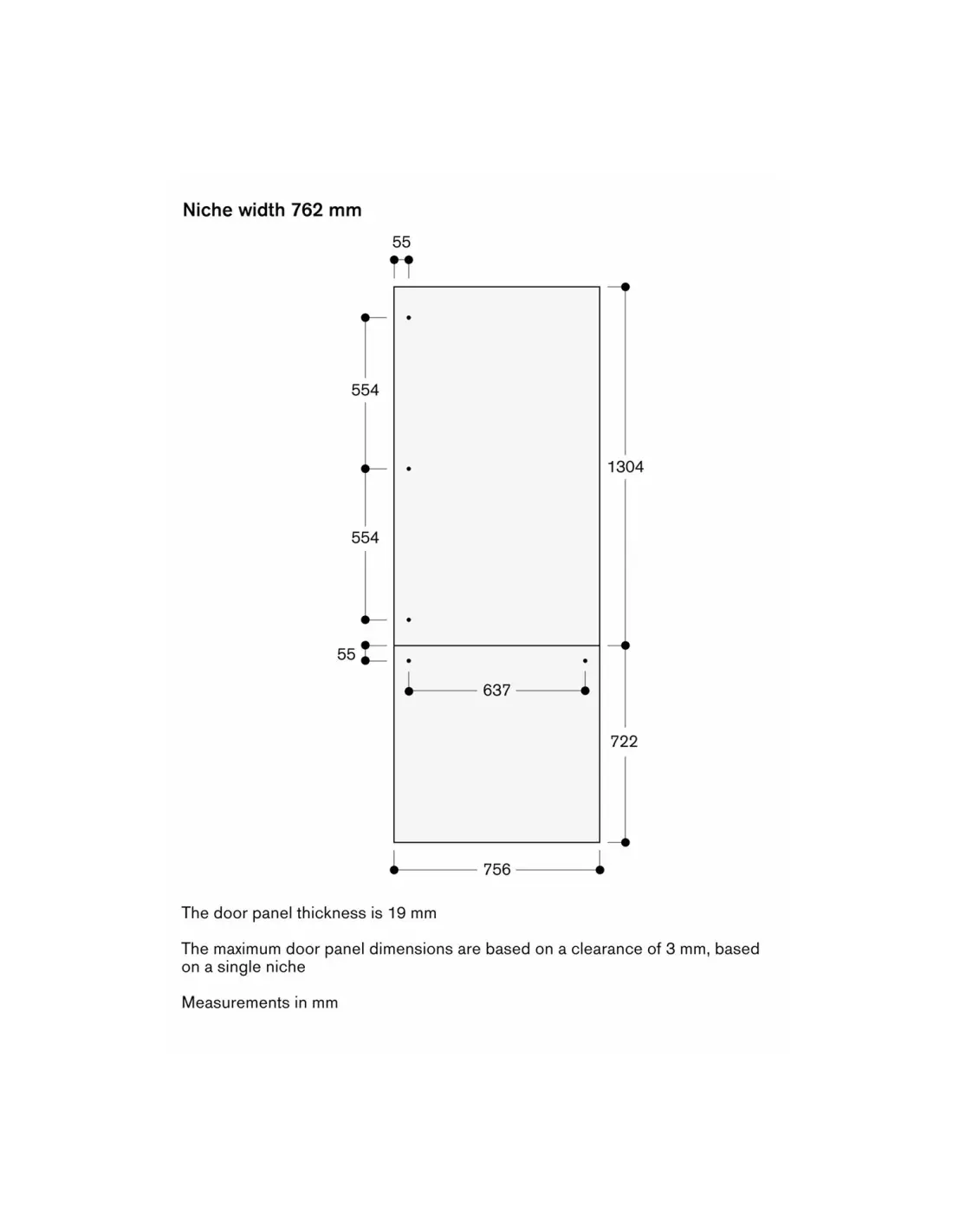

• Max.‎ door panel weight:
  - Door 41 kg.‎
  - Drawer 10 kg.‎
• Shut-off valve for water connection must be planned next to the appliance and always be accessible.‎
• If the water pressure exceeds 0.‎8 MPa (8 bar), connect pressure relief valve between water tap and hose set.‎
• Water inlet.‎, Supply hose 2.‎0 m with 3/4 " connection.‎

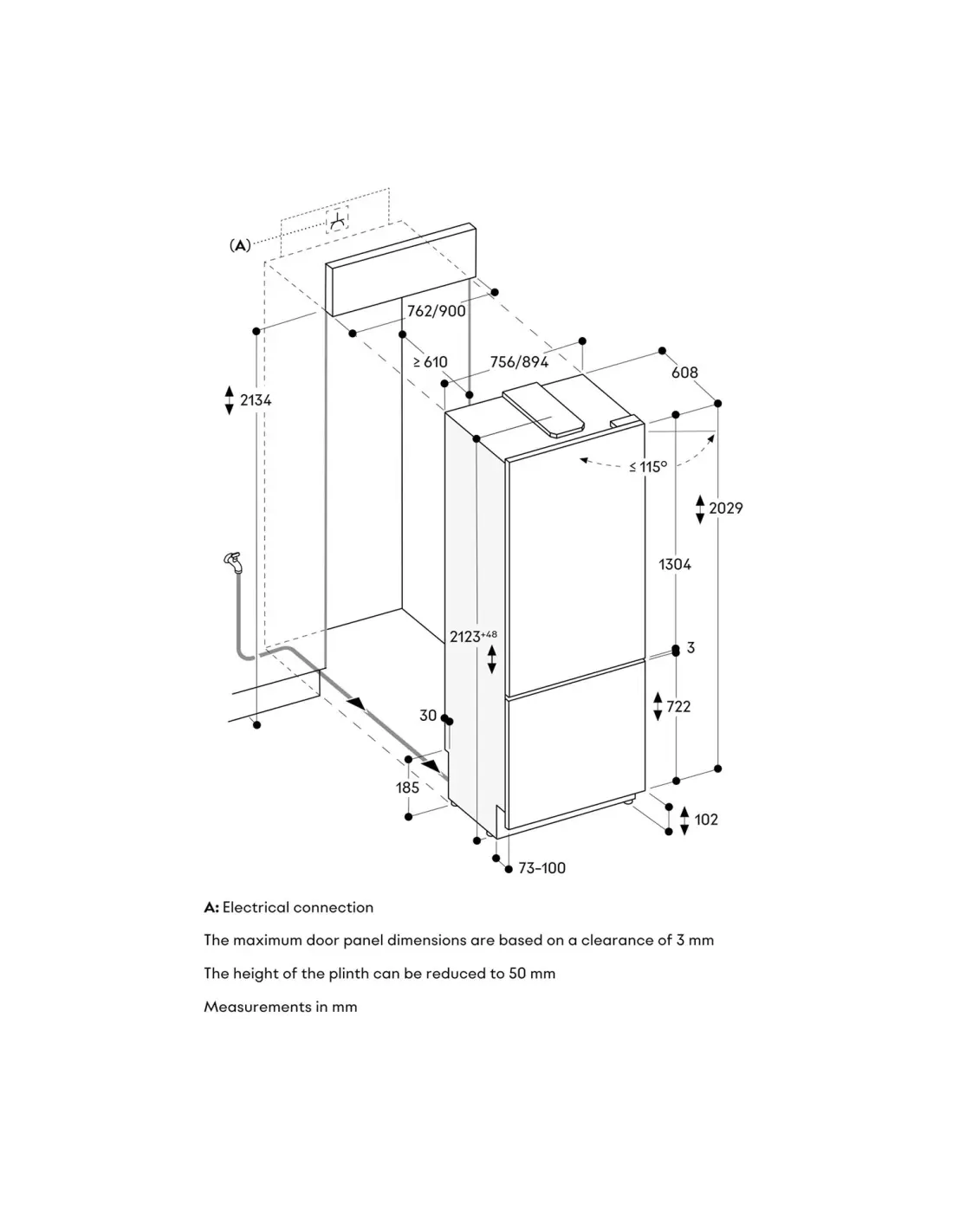

• Appliance dimensions (incl. handle): WxHxD ≈ 756x2125x608 mm

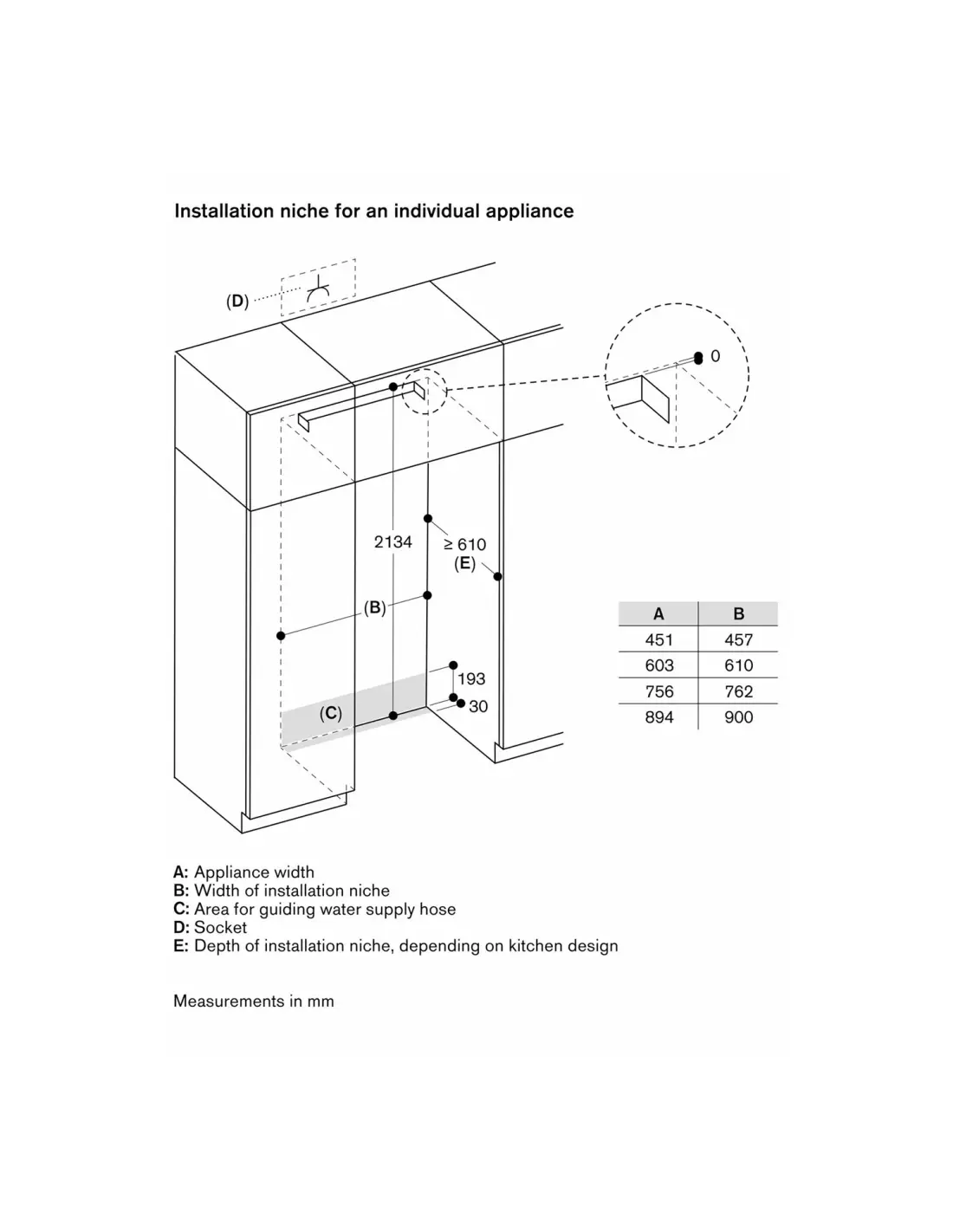

• Recess dimensions for built-in units (mm): 762x2134x610

GAGGENAU
Made in EU
