Built-in hood / Air intake

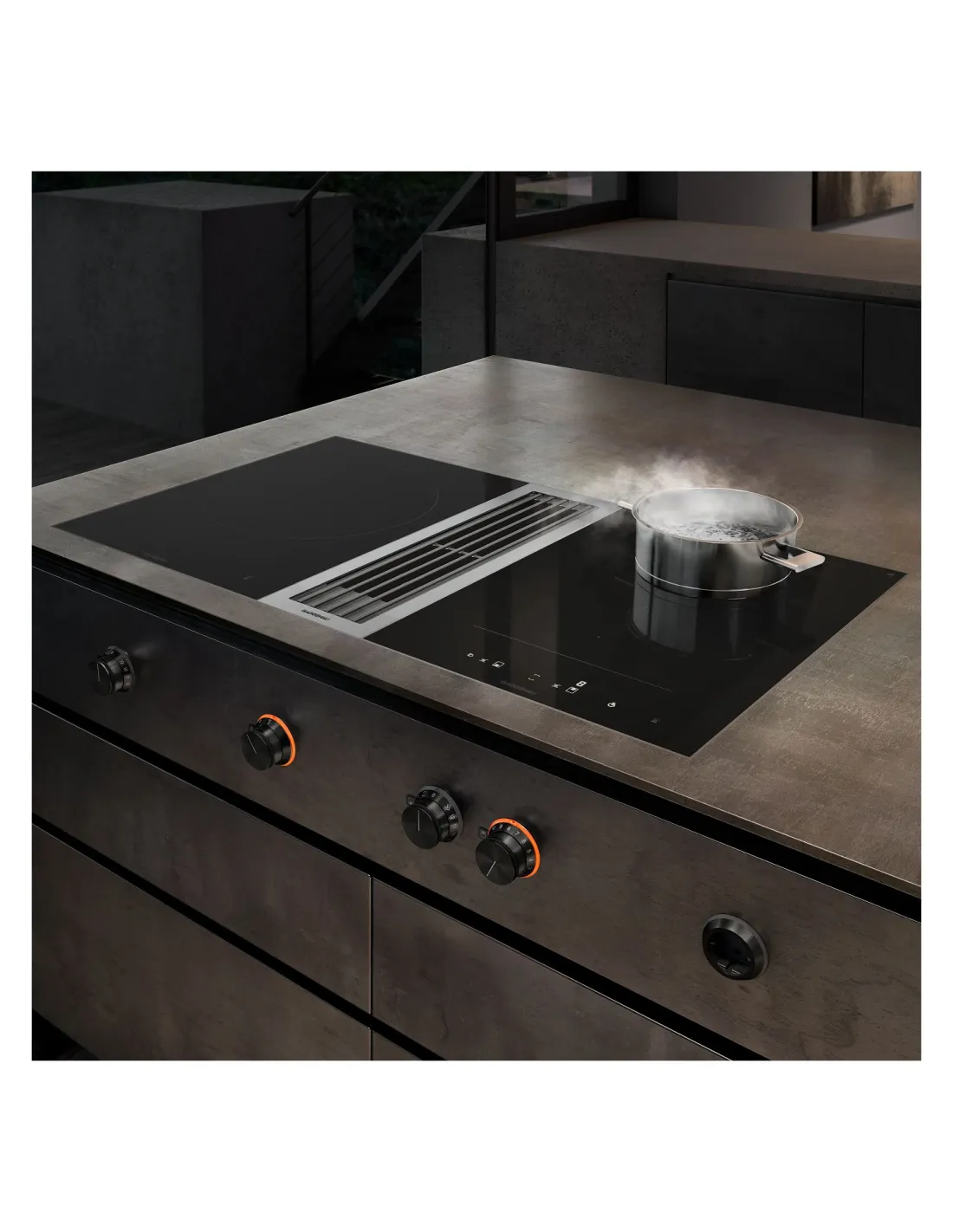

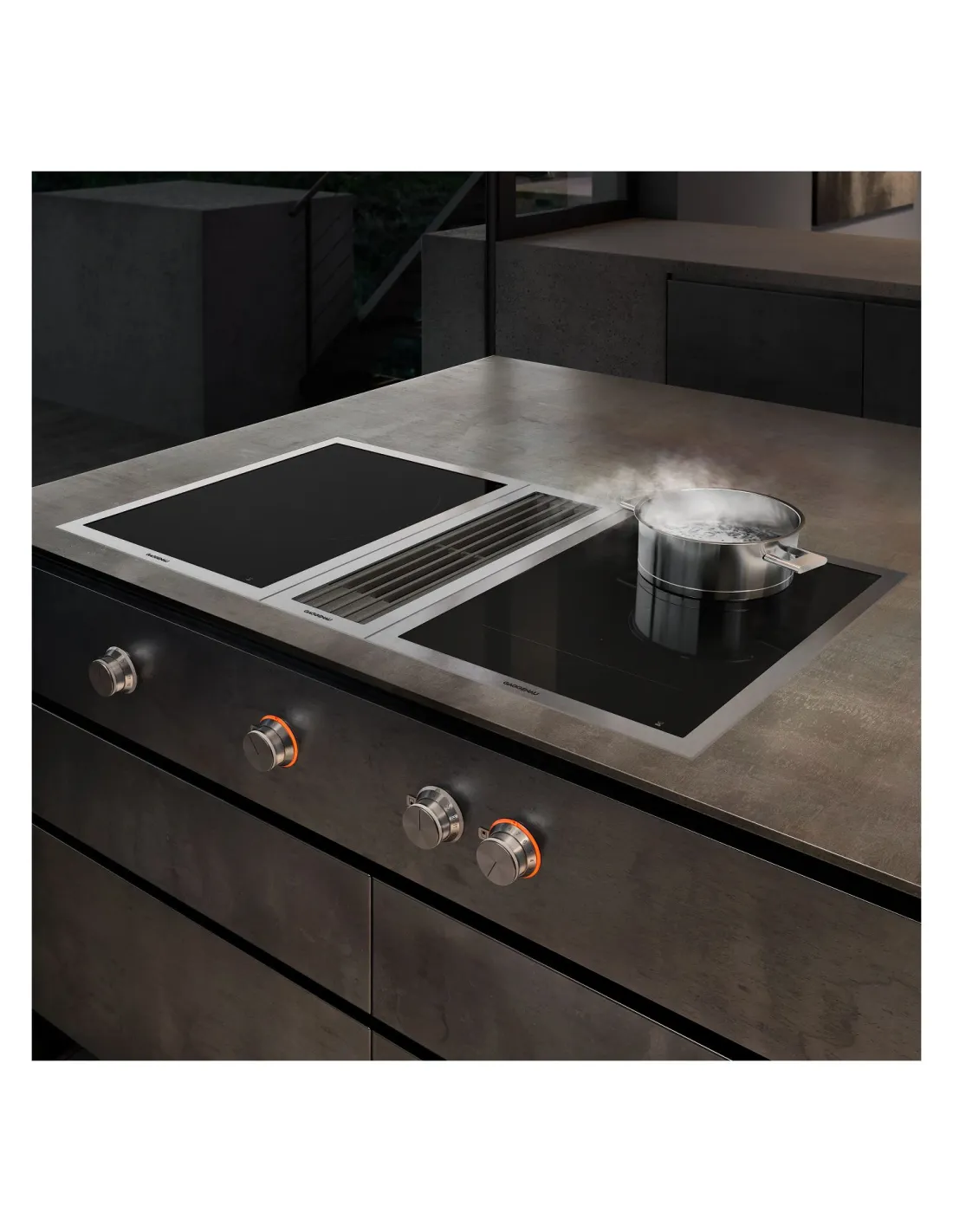

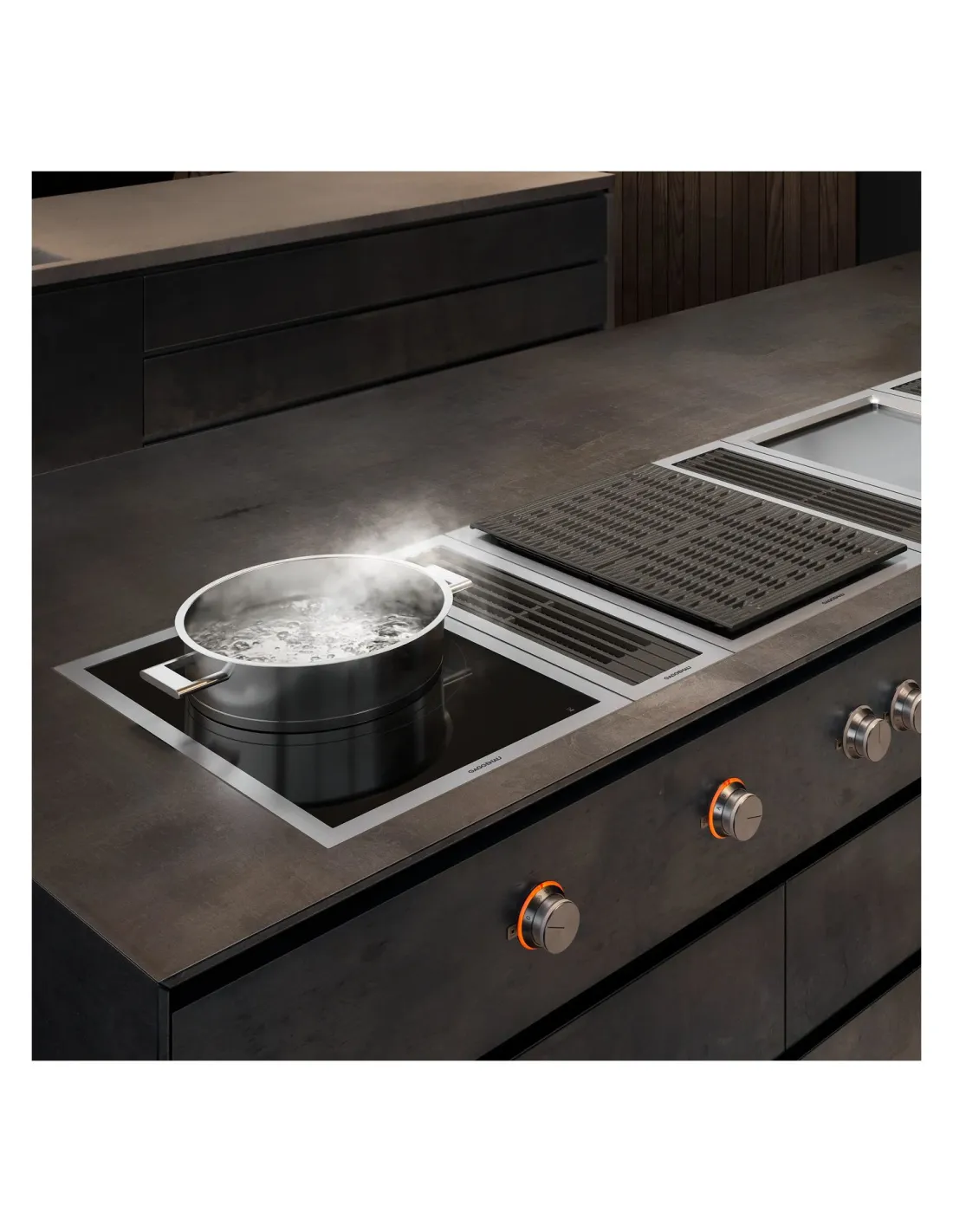

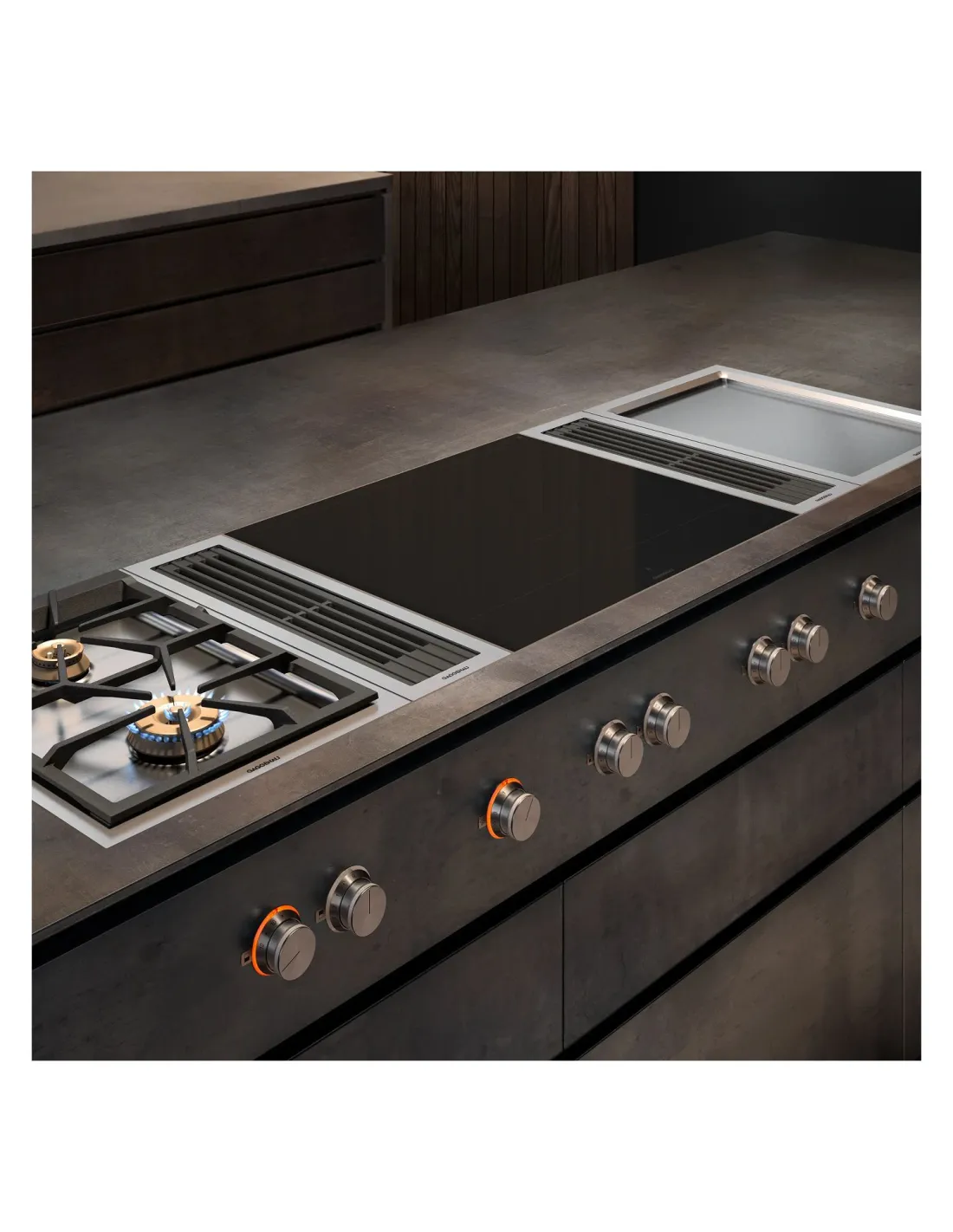

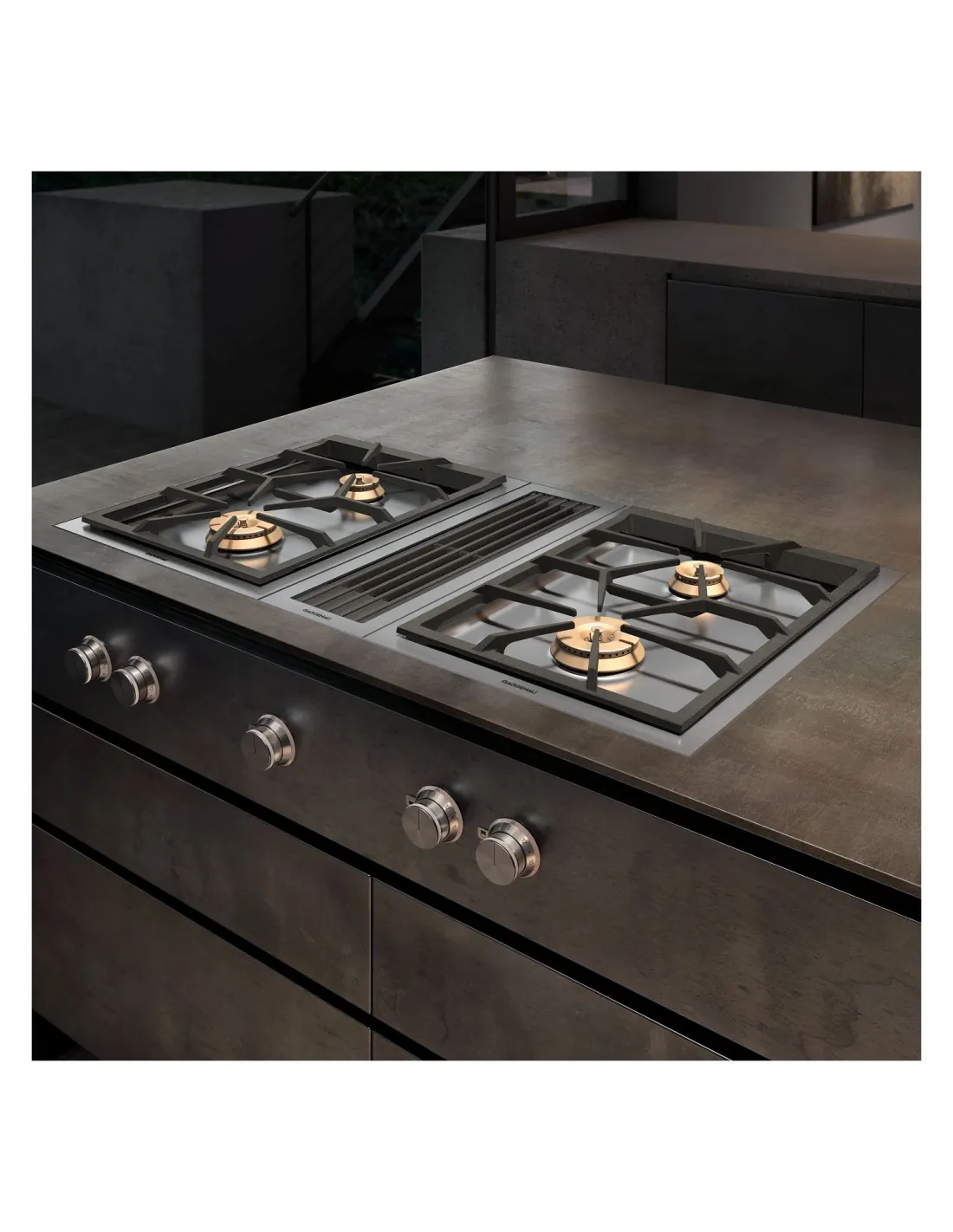

Placed next to the cooktop in the countertop, it extracts all fumes downwards.
Can be mounted on the countertop, either flush or top-mounted.
Up to four ventilation elements can be connected to a single motor.
The appliance operates silently and efficiently.
DOMINO VarioLine
400 Series

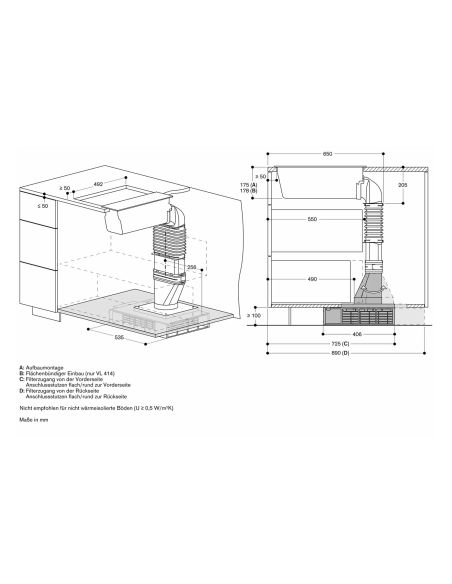

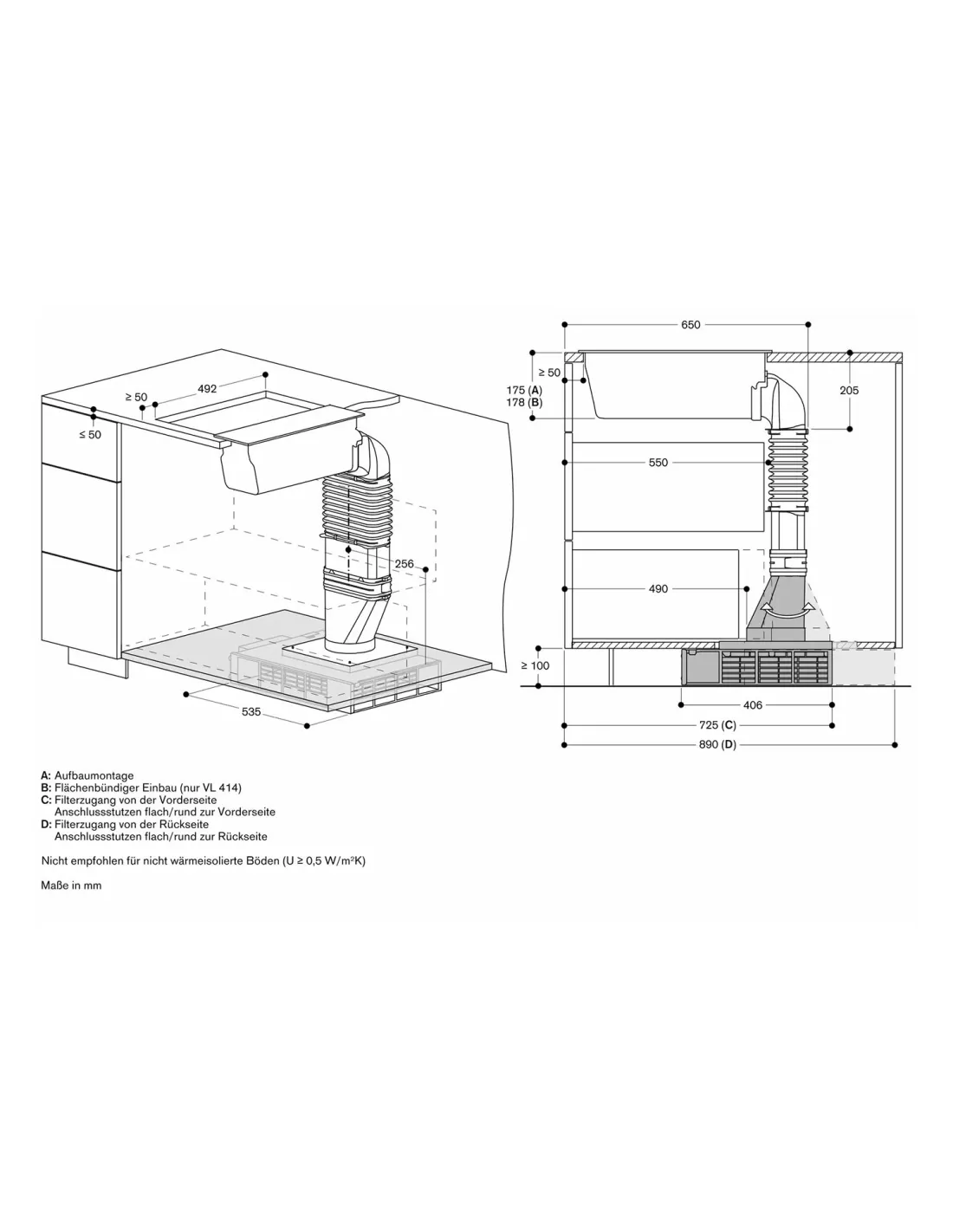

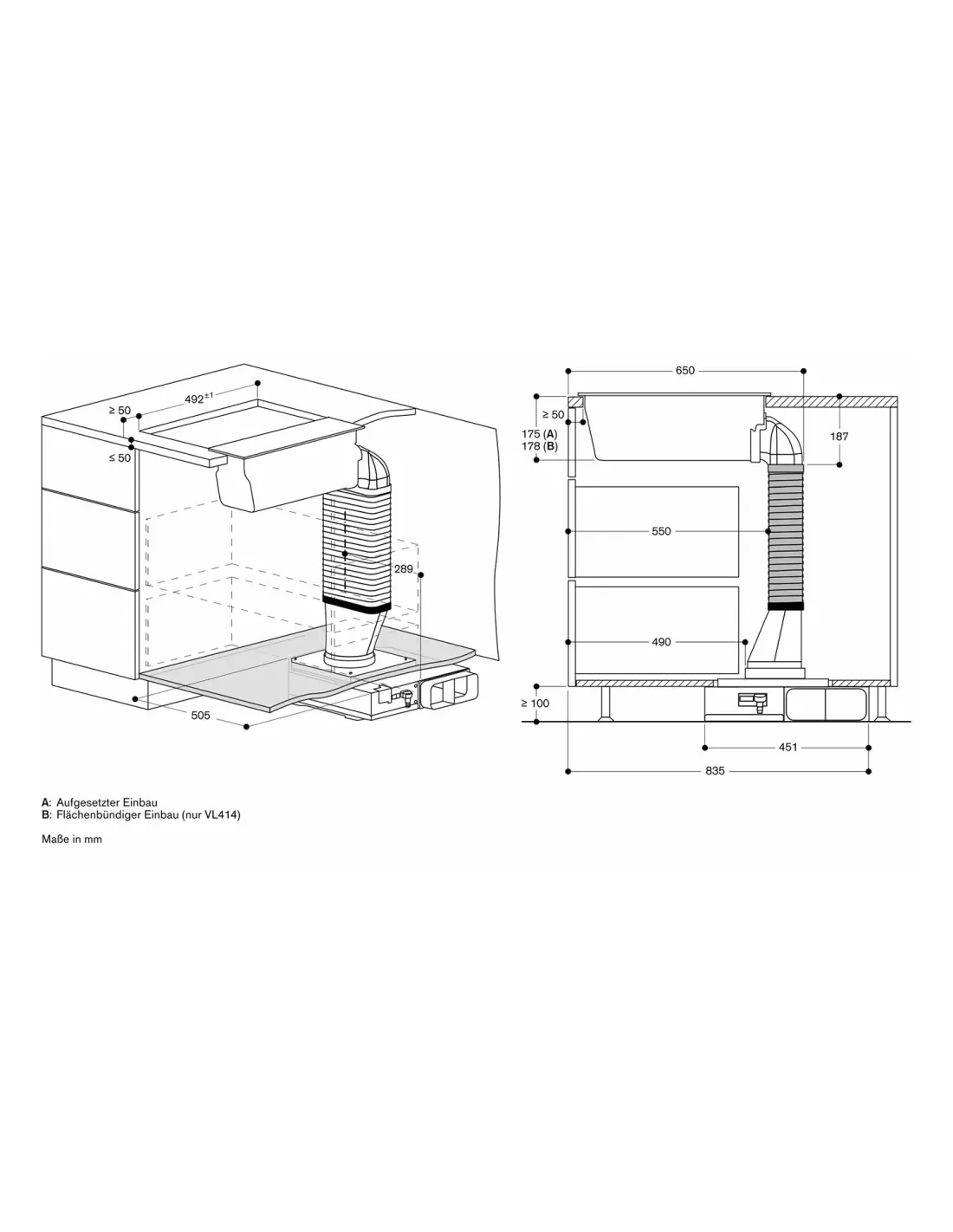

Installation:
- Top-mounted
- Flush-mounted
Width: 15.5 mm
External motor and rotary control knobs are ordered separately.
Motor connection accessories are not included.
Performance and noise levels depend on the selected motor.
- Worktop Hood / Hob Air Intake
- Pairs perfectly with other Vario 400 Series appliances.
- Performance (exhaust mode) according to EN 61591: Dependent on the selected motor.
- Noise Level: Dependent on the selected motor.
- 4 power levels, including intensive mode
- Metal filter traps up to 96.5% grease
- Automatic Run-On Function
- Recirculation Mode Option (see Accessories)

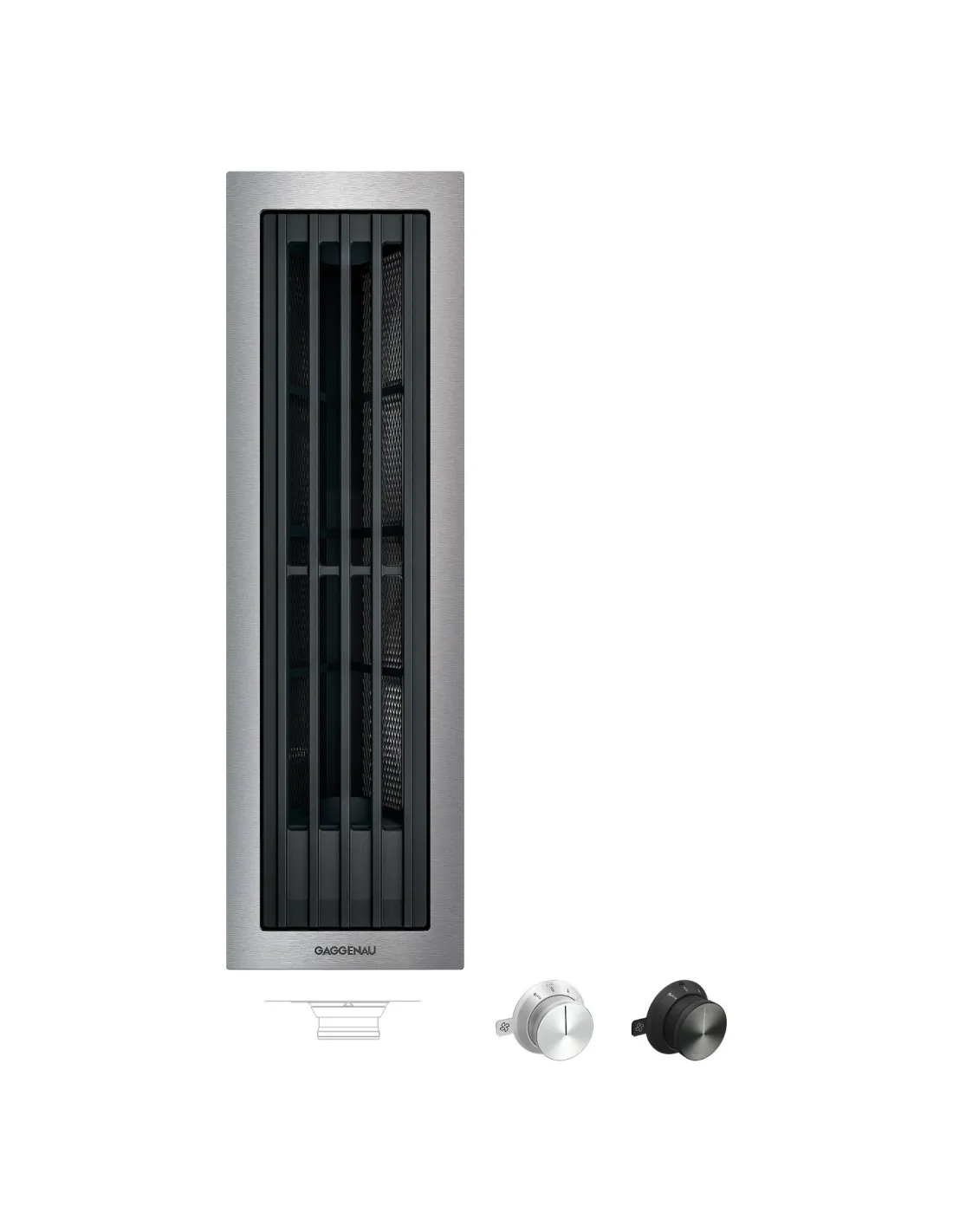

- Illuminated Rotary Control Knobs:
- Made of solid stainless steel
- With a durable black finish
- Control knob with light ring.
- To ensure good performance, the required duct length Lmax is 26 m.
- Total Connected Load: 10 W.
- Standby/Display Mode Power: 0.2 W. 1.8 m connection cable with plug.
- LAN cable not included.

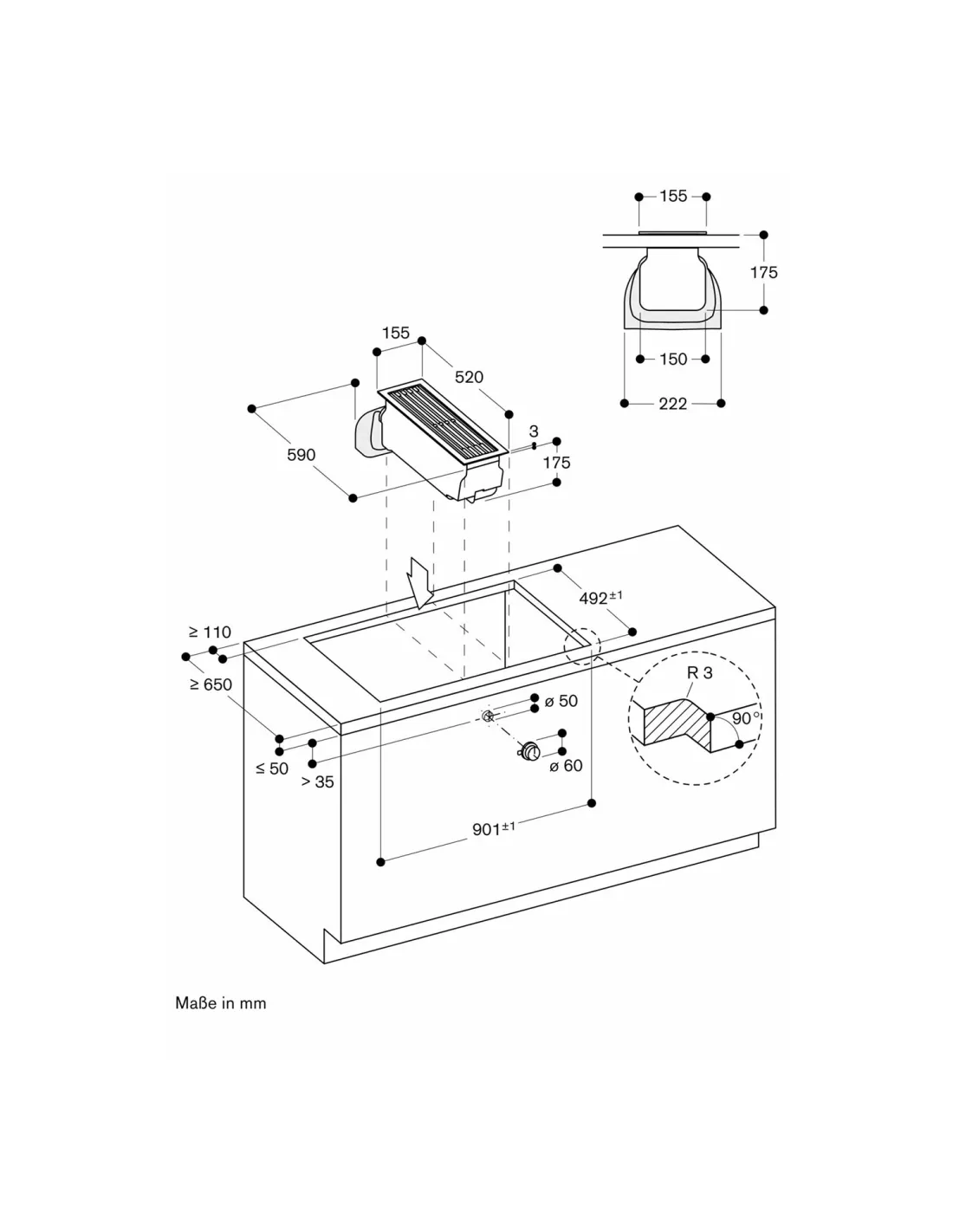

- Unit dimensions: W x D ≈ 155 x 520 x 175 mm

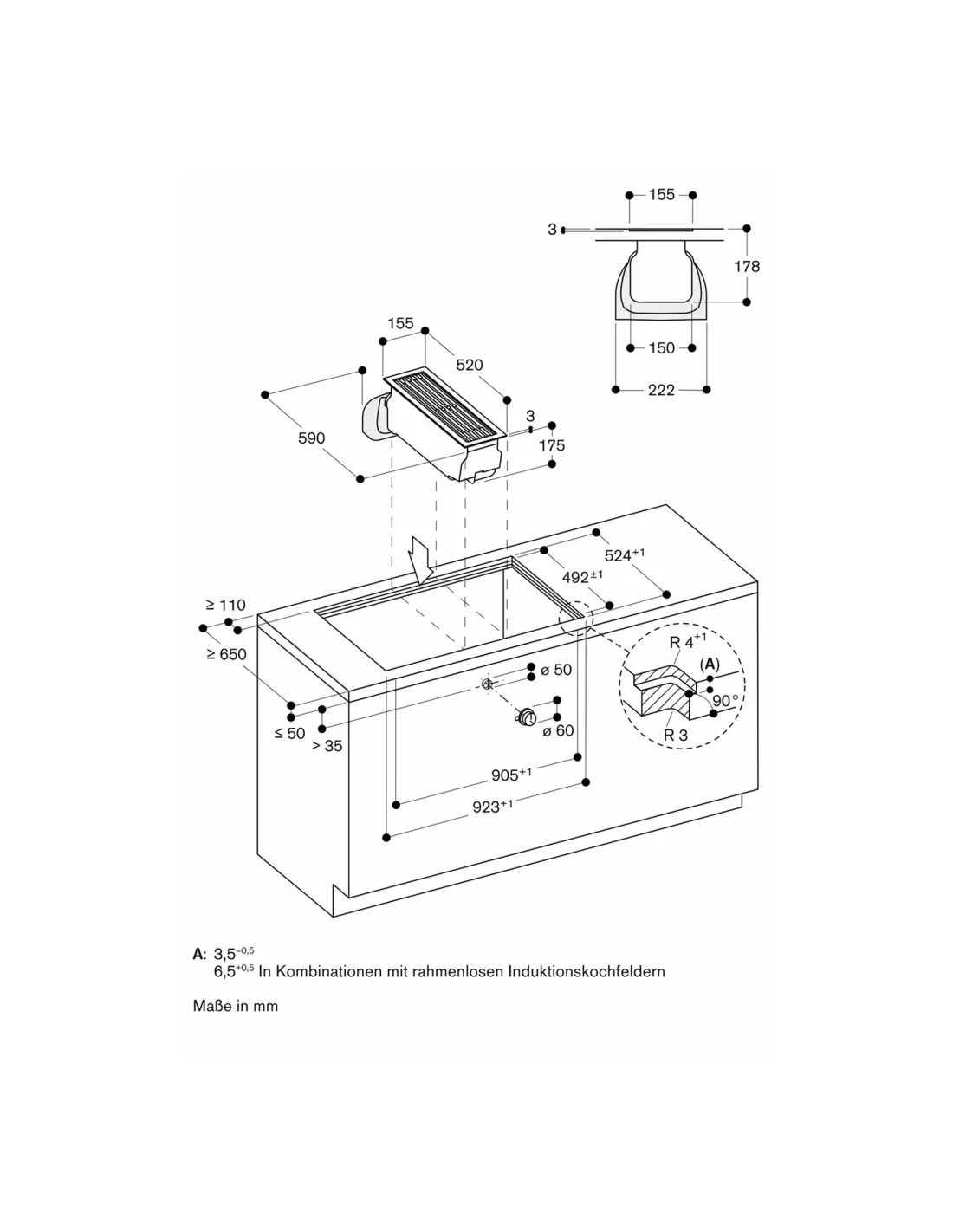

- Recess dimensions (mm): 150 x 492 mm
- Switches:
СKV 410010 - Stainless steel

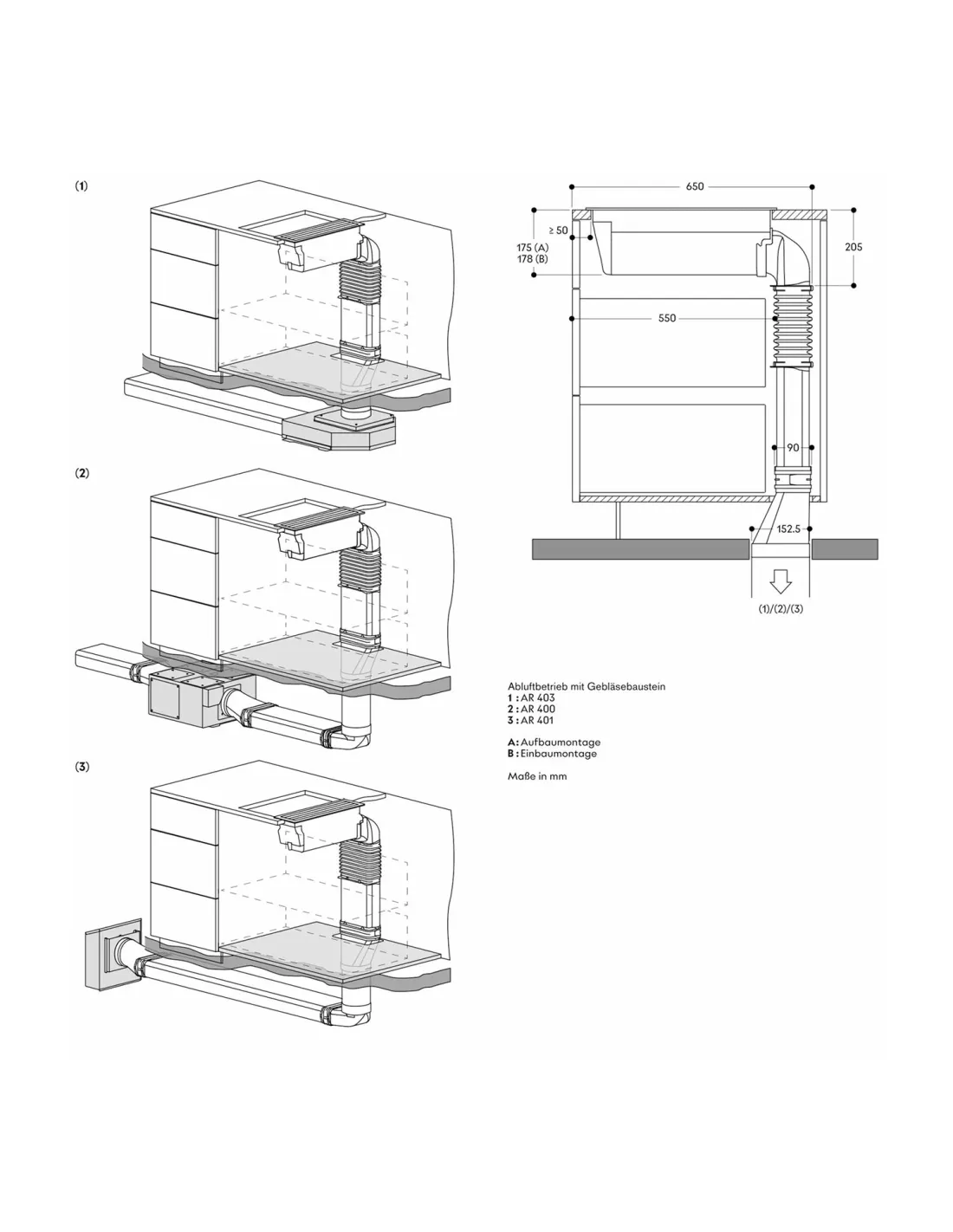

CKV 410000 Black - External Motor: AR403122, AR413122, AR410010, AR400142, AR401142.

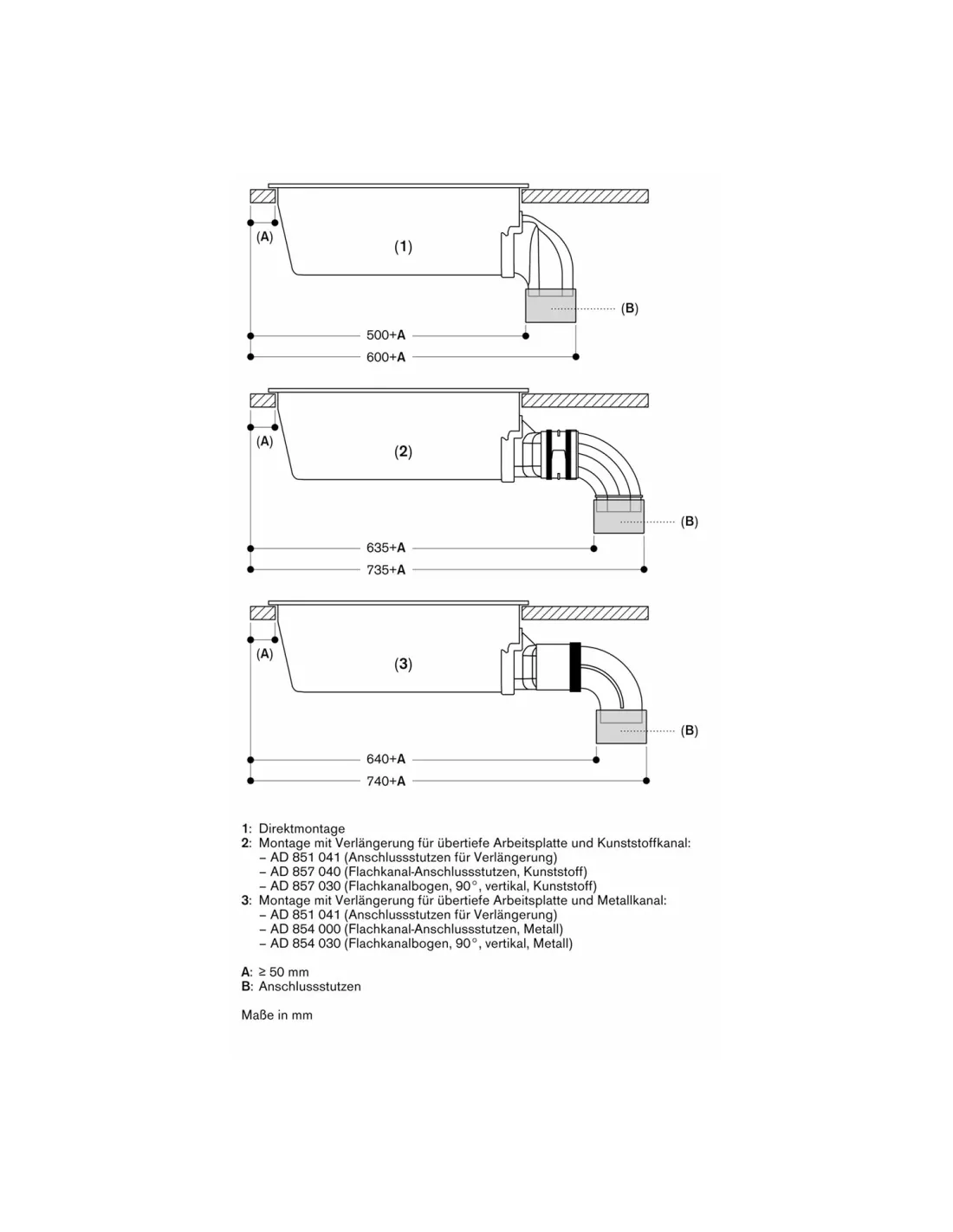

- Installation
- Flush installation
- Surface finish:
- Stainless Steel
- Overall size (WxDxH)
- 155x152mm
- Power:
- 115w
- Width
- 155mm
- Depth
- 520mm
Kitchen appliances GAGGENAU
