GAGGENAU GM220100 R Minimalistic Series 38cm Onyx Microwave, Right/Right-Hinged

Minimalistic Series — Built-in Microwave oven, 60 × 38 cm, Right/Right-Hinged

Design and Controls

• Handleless all-glass door with electronic opening.
• Full TFT touchscreen display
• Door with soft-close mechanism, side opening, 95° opening angle.
• Interface available in 42 languages.
• Information texts for additional information.

Features

• Individual and combined microwave and grill modes.
• Automatic programs and setting recommendations.
• Save up to 10 favorite programs.
• Net capacity: 21 liters.

Heating modes / programs

• Microwave mode with 6 power levels: max. 900, 600, 450, 360, 180, 90 W.
• Full-surface grill with 3 intensity levels, maximum power of 1300 watts.
• Full-surface grill can be combined with microwave power levels of 360, 180, and 90 watts.
• 10 automatic programs with weight display:
  3 defrost programs
  4 cooking programs
  3 combination programs
• Save up to 10 favorite dishes with Gaggenau Home Connect

Equipment

• Innowave (inverter technology) for uniform power
• Grill can be added during microwave mode for additional browning.
• Timers: cooking time, end of cooking, countdown
• Optimal food visibility thanks to side lighting.
• Digital services (Gaggenau Home Connect)
• Remote control and monitoring.

Safety

• Child safety lock (switch on/off).
• Electronic door lock to prevent accidental opening.
• Automatic safety shut-off.
• Thermally insulated door with double glazing.
• Cabinet cooling system with overheat protection.

Cleaning

• Hygienic stainless steel interior with heat-resistant glass bottom.
• Cleaning assistance program.

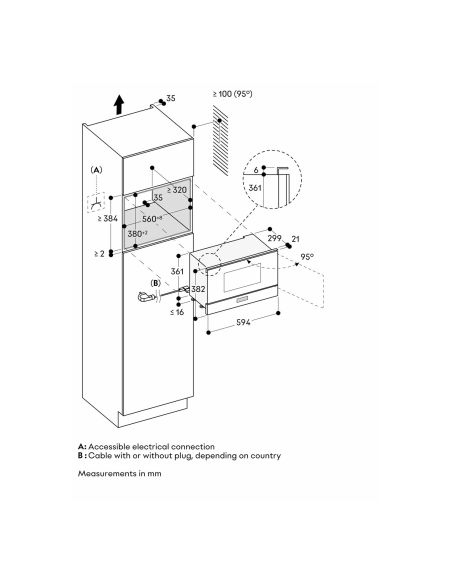

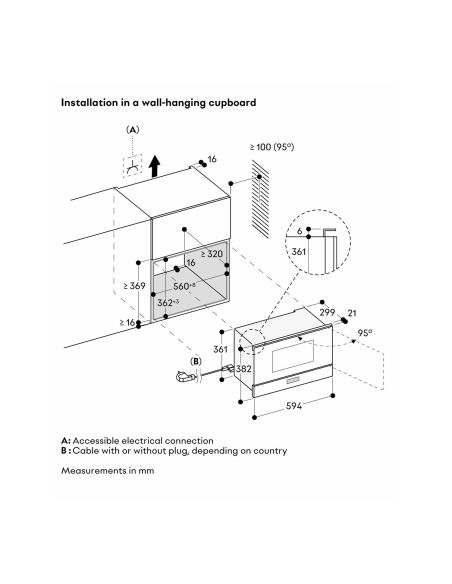

Planning and Installation

• The niche is designed without a back wall.
• Door polarity/hinging is not adjustable.
• Minimum installation height is 85 cm (along the top edge of the niche).
• Front panel overhang relative to cabinetry is 21 mm.
• Height-adjustable feet.
• Standard door opening angle is ~95°.
• Installation is possible above an oven using a standard shelf or the GA 601 010 intermediate panel.
• When planning corner placement, consider the side opening and the minimum distance to the wall.
• The power outlet must be accessible and located outside the built-in niche.

Technical Specifications

• Type: Microwave Oven. Color: Sterling - Light Gray, Onyx - Metallic Black
• Device width: 60 cm
• Power consumption, kW: 2.05 kW
• Connecting cable: 1.75 m, with plug
• Product weight: ... kg
• Packaging weight: ... kg
• Device dimensions: W x H x D (mm): 594 x 382 x 299+21
• Recess dimensions: W x H x D (mm) ≈ 560 x 380 x 320

GAGGENAU
Made in EU
