GAGGENAU AL200190 90cm Downdraft Cooker hoods
Downdraft Cooker hoods
900mm
Table ventilation 200 series
Telescopic table ventilation for combination with all Gaggenau cooktops
Can be combined perfectly with other Vario appliances of the 200 series
Black / Transparent screen for discreet integration into the kitchen space
For surface installation with a visible edge or for flush installation
The hood can be placed in or behind the work surface.
To use the device, pull out the telescopic part vertically to the surface.
Features
- Downdraft Cooker hoods 200 series
- Width: 900mm
- Table ventilation
- For flush or flush installation
- Height adjustable
- Hood without motor
- Rim suction technology
- Headspace concept
Perimeter aspiration technology. Thanks to the perimeter suction technology, the new hoods operate at an especially high flow rate, which ensures greater suction efficiency - Color: Black / Transparent screen for discreet integration into the kitchen space
- Performance depends on the selected motor
- 4-stage electronic power adjustment / 3 + 1 / Intensive mode is set for short-term operation, in case of heavy dirt
- Grease filter saturation indicator. The filter is dishwasher safe
- Ability to work in circulation mode
- Noise level min. 39 dB / max. 70 dB in normal mode.
- Work surface lighting: LED lamps, 4 x LED modules.
- Installation is possible in a worktop made of stone, synthetic material or solid wood. Heat and water resistance must be considered
- Recirculating air mode possible ( see optional accessories )
- Compatible with frameless induction cooktops 400 series (CX 482) or 200 series (CI 282 / CI 283)
Technical data:
- Connected load 300W
- Power cable length (cm) 170
- Noise level min. 39 dB / max.70 dB in normal mode.
- Power consumption 39,6 kWh / year.
- Ventilation efficiency class A.

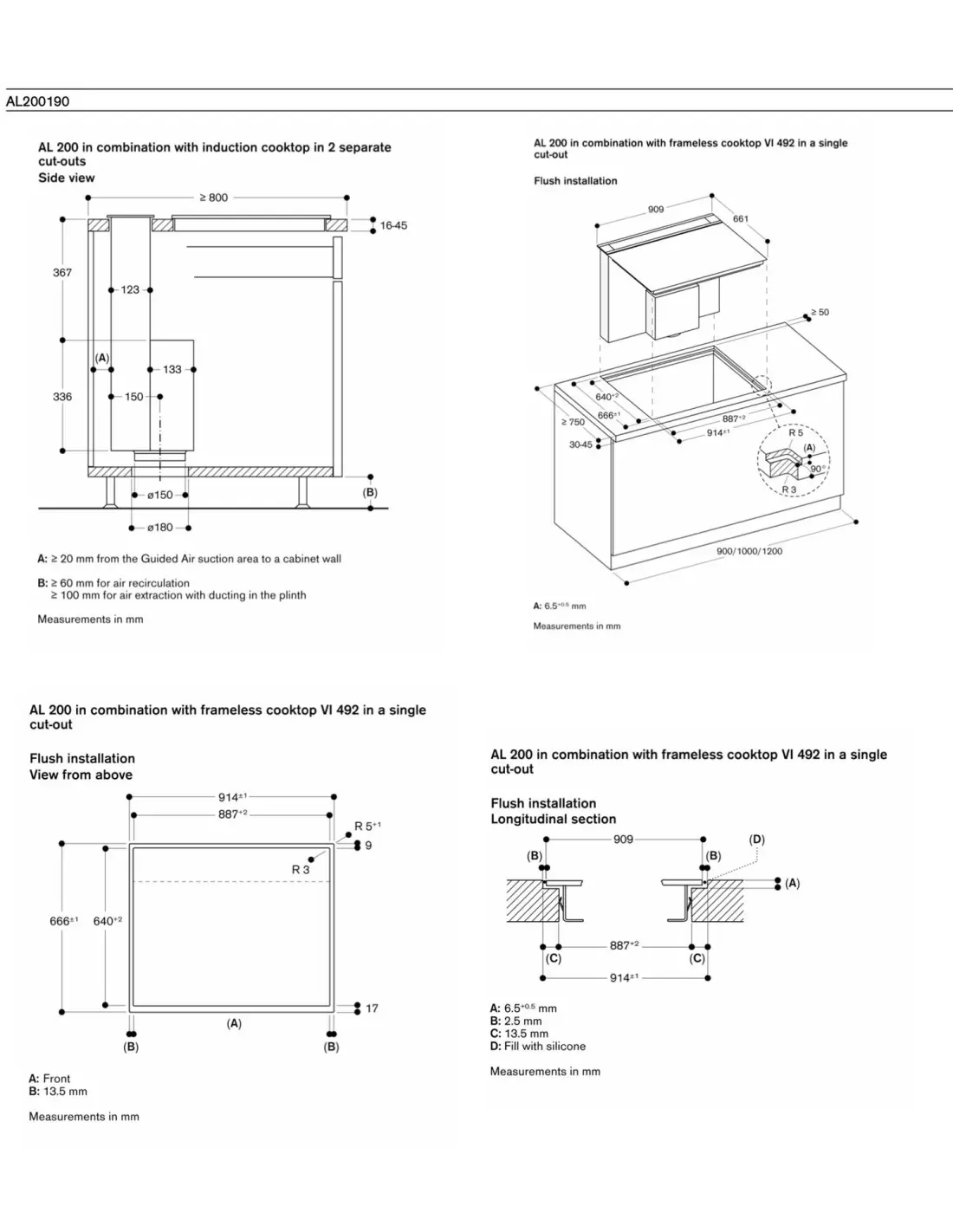

- Appliance dimensions W x H x D approx. 908 x 753-1050 x 140mm
- Niche dimensions W x H x D approx. 854 x 708 x 123mm
- Elbow Ø 150 mm,
- The motor can be mounted on the front or back
Optional accessories:
Gaggenau
Made in Germany
- Brand
- GAGGENAU
- Reference
- AL200190
- EAN
- 4242006292829
- MPN
- AL 200190
- Height (mm)
- 850
- Extractor unit
- Built-in
- Material
- Stainless Steel
- Width (mm)
- 880
- Depth (mm)
- 140
- Condition
- New
