MIELE DFKS-A-1 Flat air kit for exhaust air mode

Flat duct kit for extract air mode (incl. wall grille)
For efficient operation in exhaust air mode

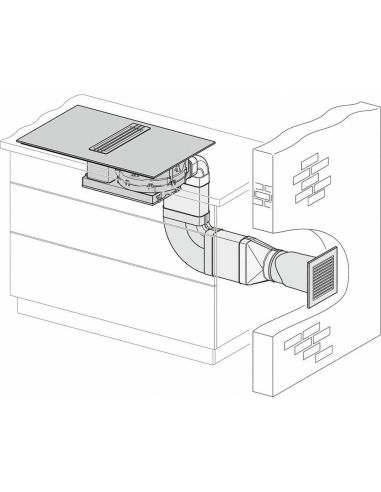

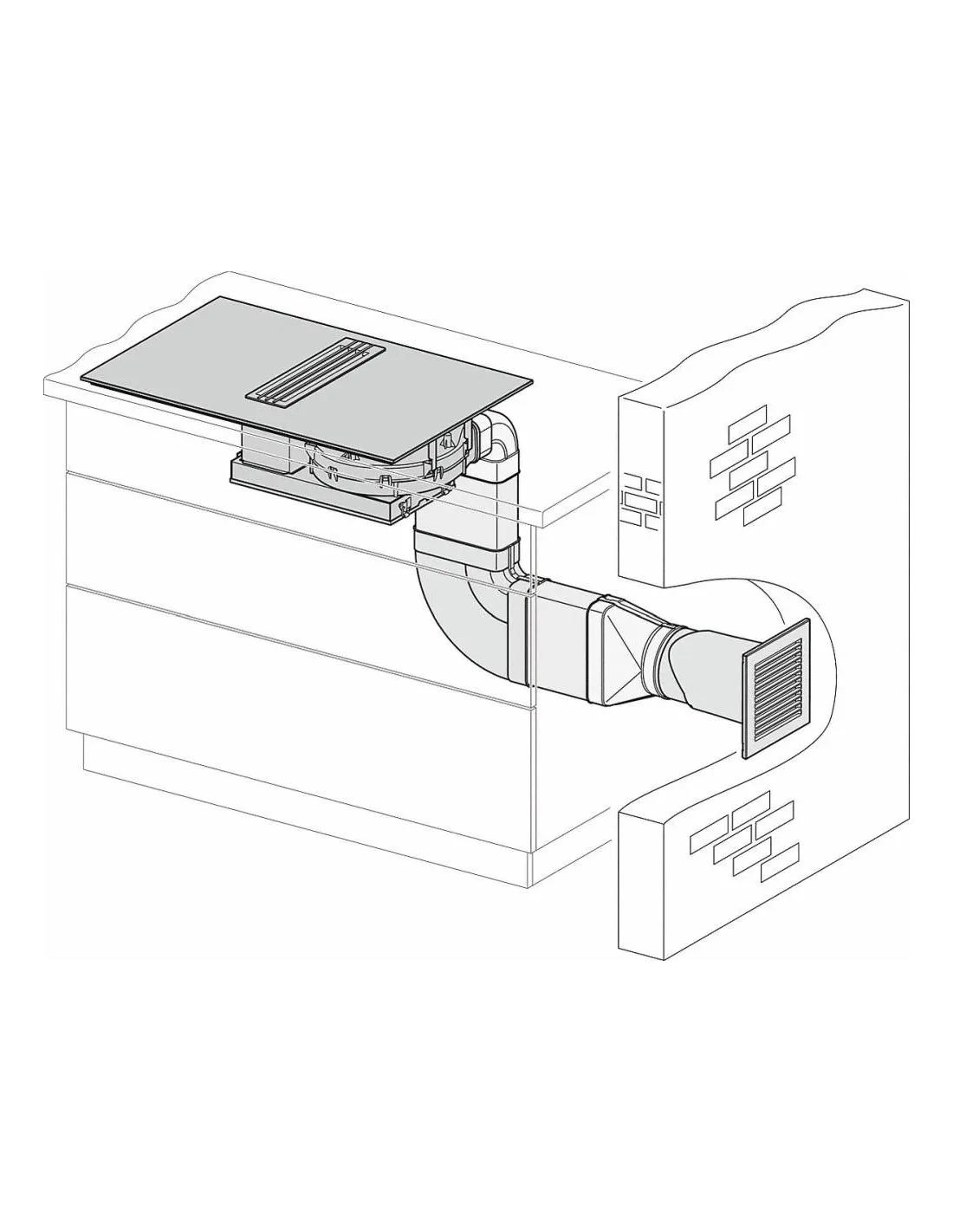

 The wall-mounted vent is designed to be combined with a Miele extractor hood. A built-in non-return damper prevents unwanted air exchange between indoor and outdoor air when the hood is switched off. After turning on the hood, the non-return valve opens under air pressure, thanks to which the air is freely discharged to the outside.

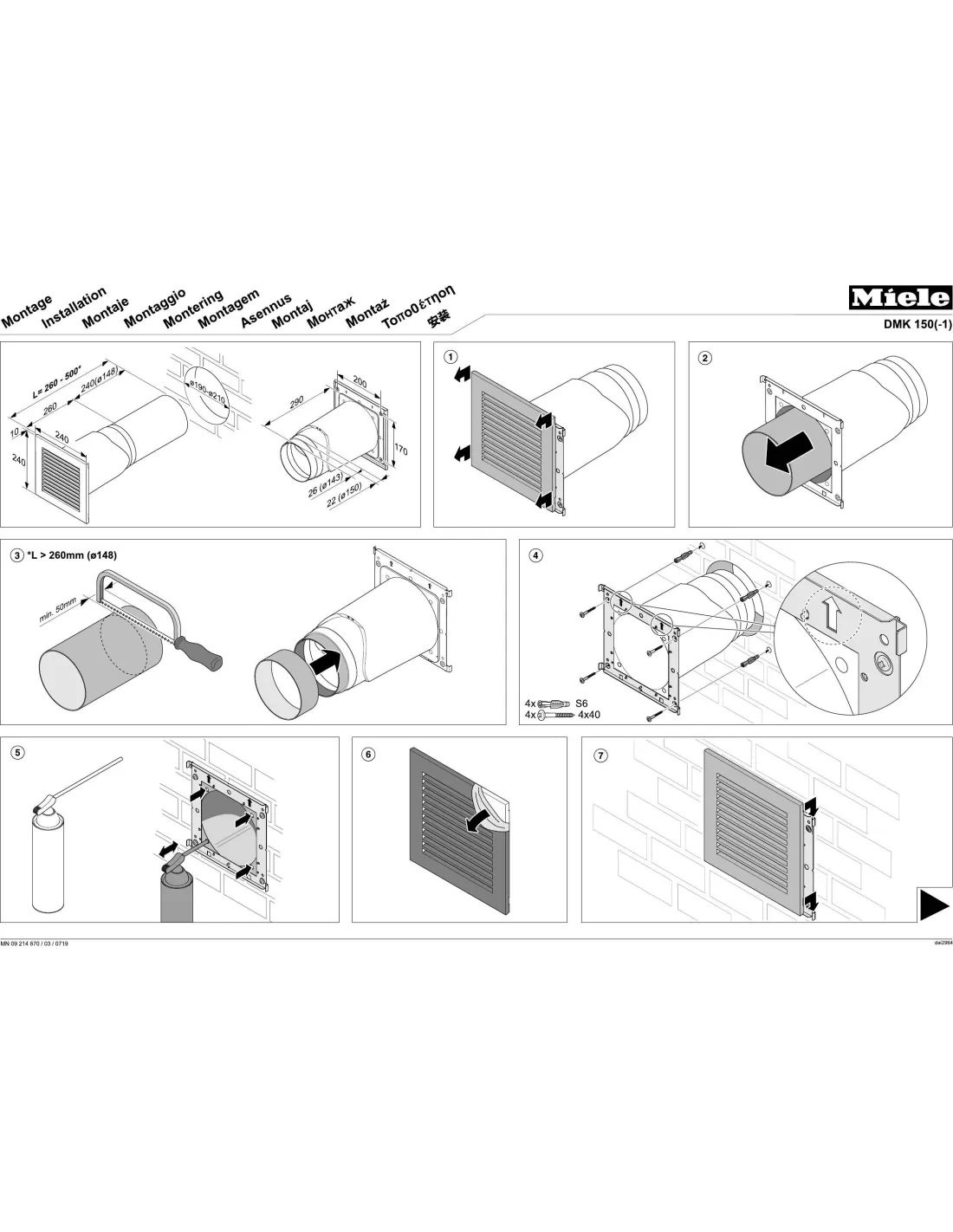

It is very important that the attached duct and all connections are tight to avoid air leakage and that the non-return damper opens freely. When laying the duct, follow the instructions given in the operating instructions for the hood.

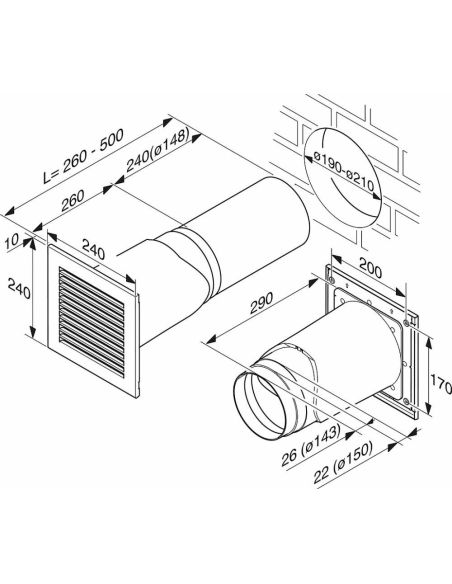

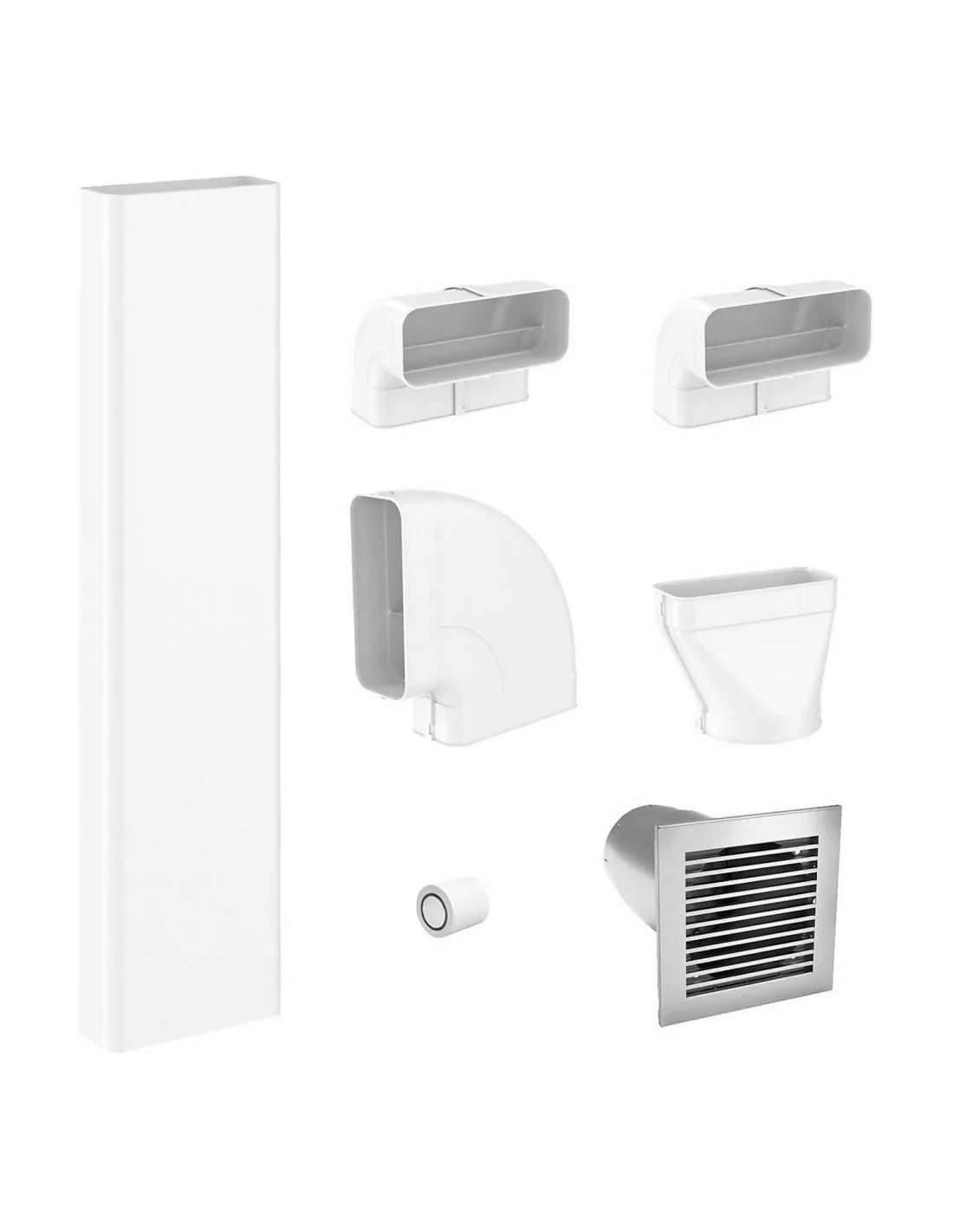

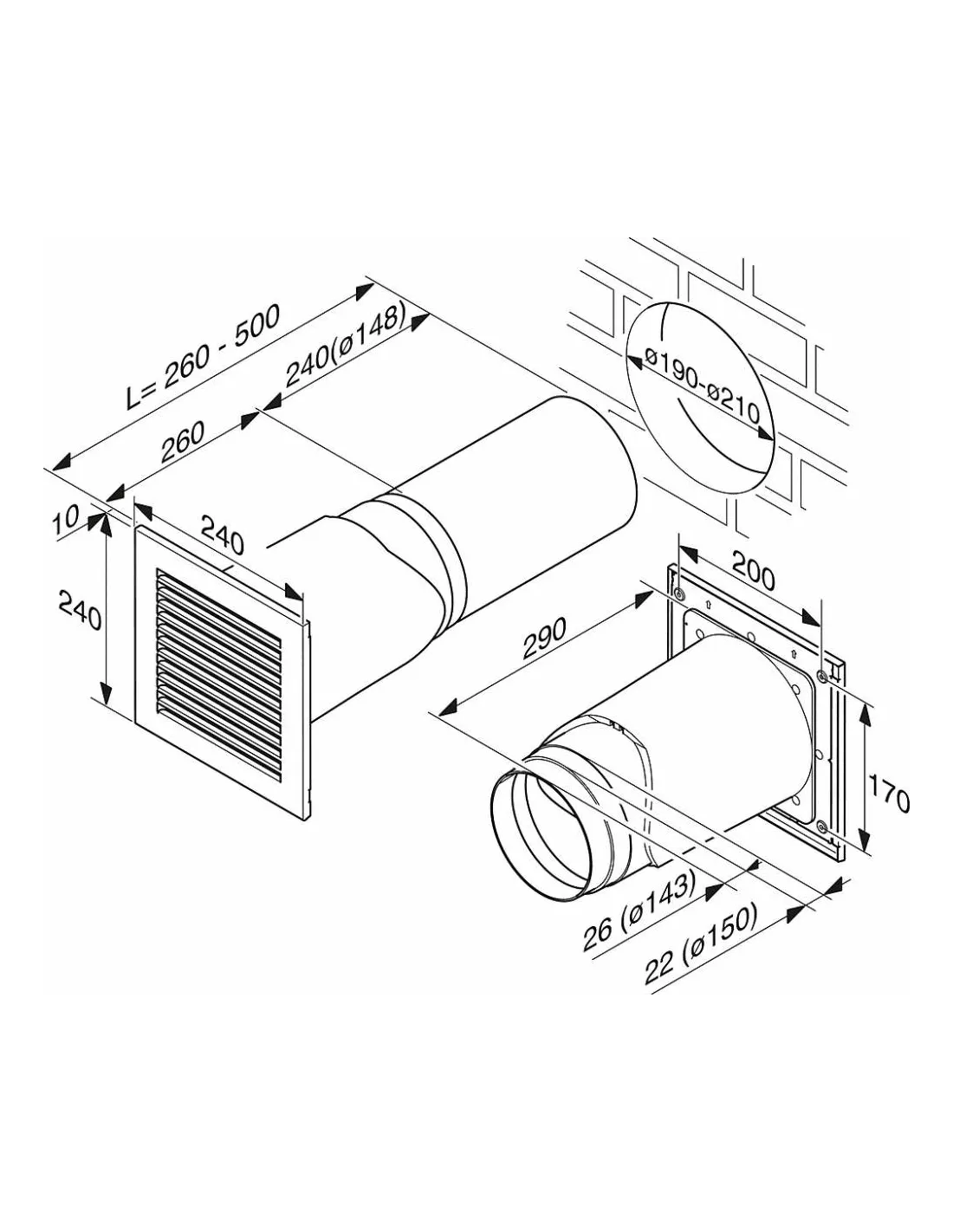

• On ventilation grille (DMK 150-1) + 1 x adapter (DFK-A)
• 1 x outlet (DFK-BV 90) + 1 x adapter (DFK-AK 90) +1 x outlet (DFK-BH 90) +1 x 1 m (DFK-R1000)
• 1 x sealing tape (DFK-DB)
• National building codes must be followed
• Simplifies planning, set at an attractive price

Miele
Made in EU
