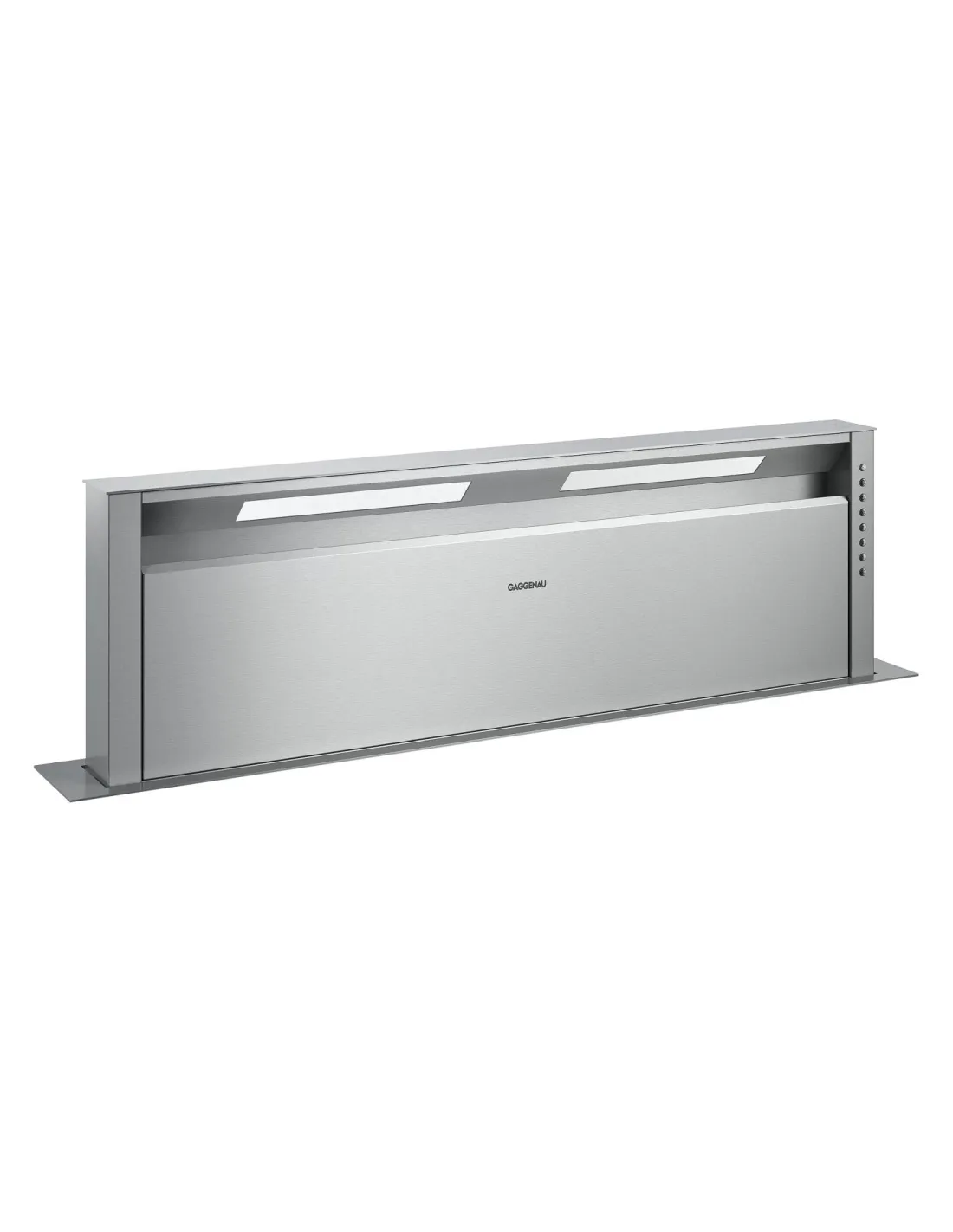

GAGGENAU AL400122 120cm Downdraft Cooker hoods
Downdraft Cooker hoods
Width: 1200mm
Table ventilation 400 series
Telescopic table ventilation for combination with all Gaggenau cooktops
Can be combined perfectly with other Vario appliances of the 400 series
Precision crafting of 3 mm stainless steel

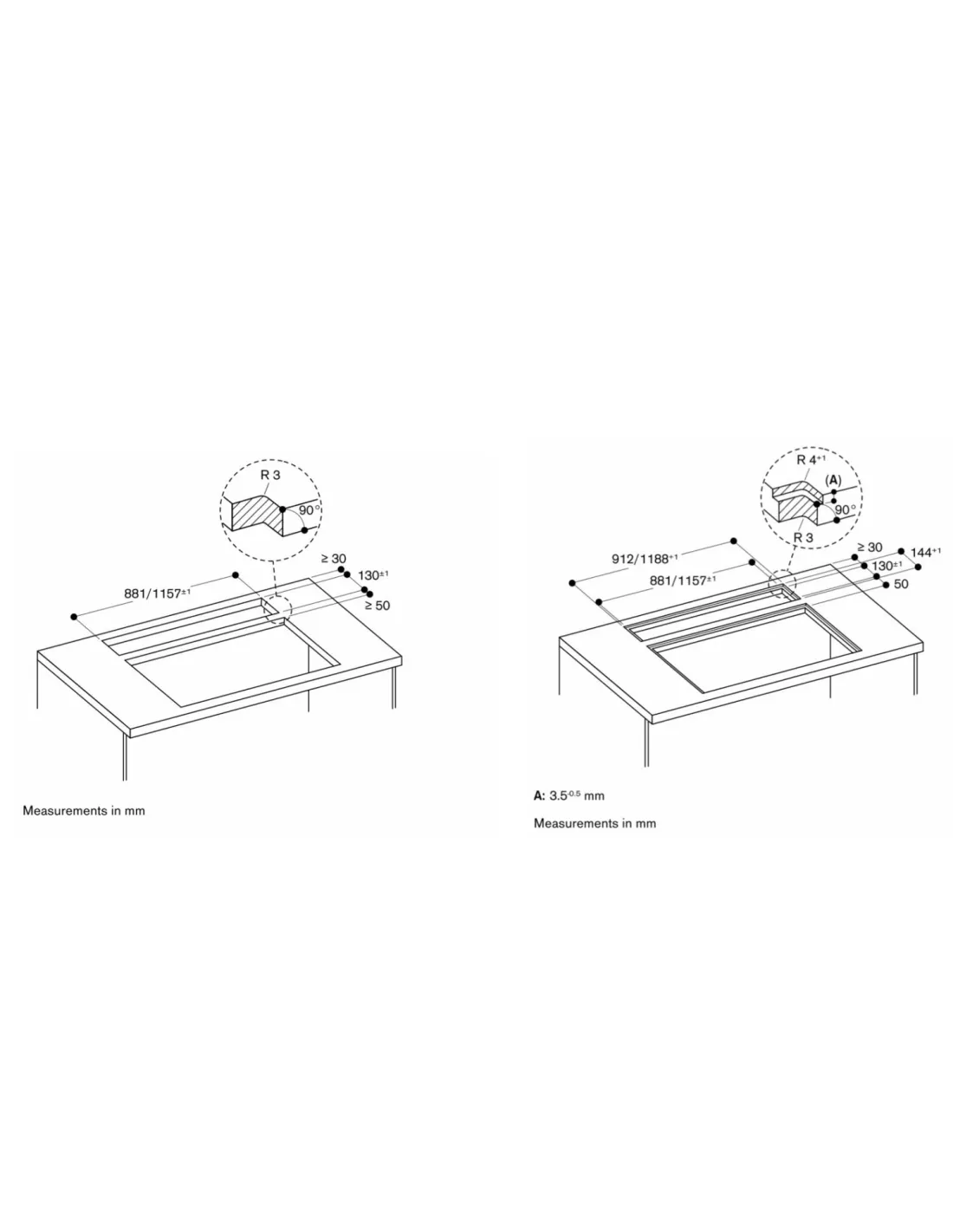

For surface installation with a visible edge or for flush installation
Motorless, can be combined with Gaggenau BLDC remote fan units
The hood can be placed in or behind the work surface.
To use the device, pull out the telescopic part vertically to the surface.
Features
- Downdraft Cooker hoods 400 series
- Table ventilation
- For flush or flush installation
- Height adjustable
- Hood without motor
- Width: 1200mm
- Rim suction technology
- Headspace concept
Perimeter aspiration technology. Thanks to the perimeter suction technology, the new hoods operate at an especially high flow rate, which ensures greater suction efficiency
Color: Stainless steel
Without motor, you need to order a motor - Performance depends on the selected motor
4-stage electronic power adjustment / 3 + 1 / Intensive mode is set for short-term operation, in case of heavy dirt
Grease filter saturation indicator. The filter is dishwasher safe
Ability to work in circulation mode
Noise level min. 45 dB / max. 61 dB in normal mode.
Work surface lighting: LED lamps, 4 x LED modules.
Metal filter with steel frame (5-layer)
Installation is possible in a worktop made of stone, synthetic material or solid wood. Heat and water resistance must be considered - Recirculating air mode possible ( see optional accessories )
Technical data:
- Connected load 65 W
- Power cable length (cm) 170
- Noise level min. 45 dB / max. 61 dB in normal mode.
- Power consumption 45.5 kWh / year.
- Ventilation efficiency class A.
- Appliance dimensions W x H x D approx. 1190 x 535 x 140mm

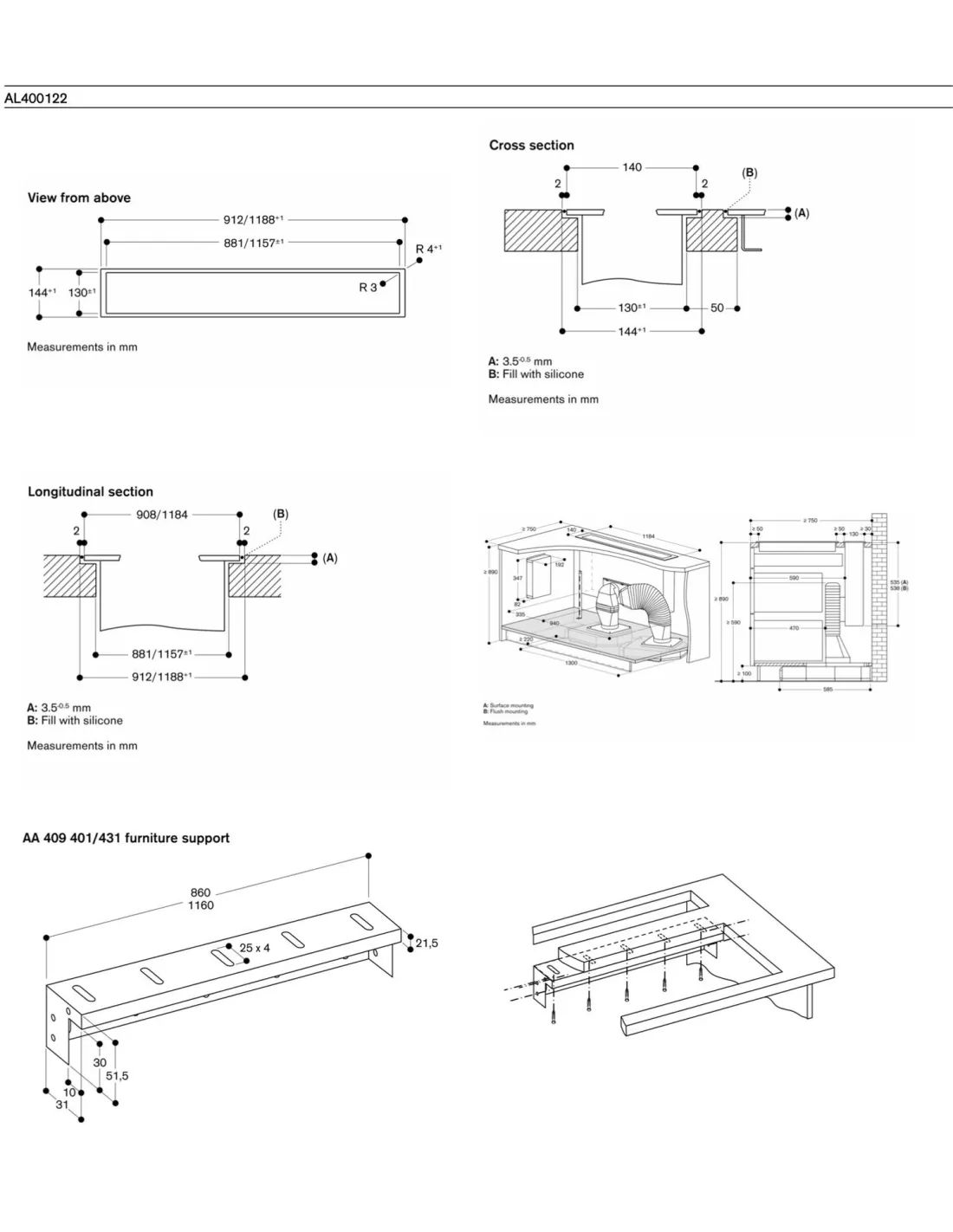

- Niche dimensions W x H x D approx. 1156 x 540 x 140mm
- Elbow Ø 150 mm,

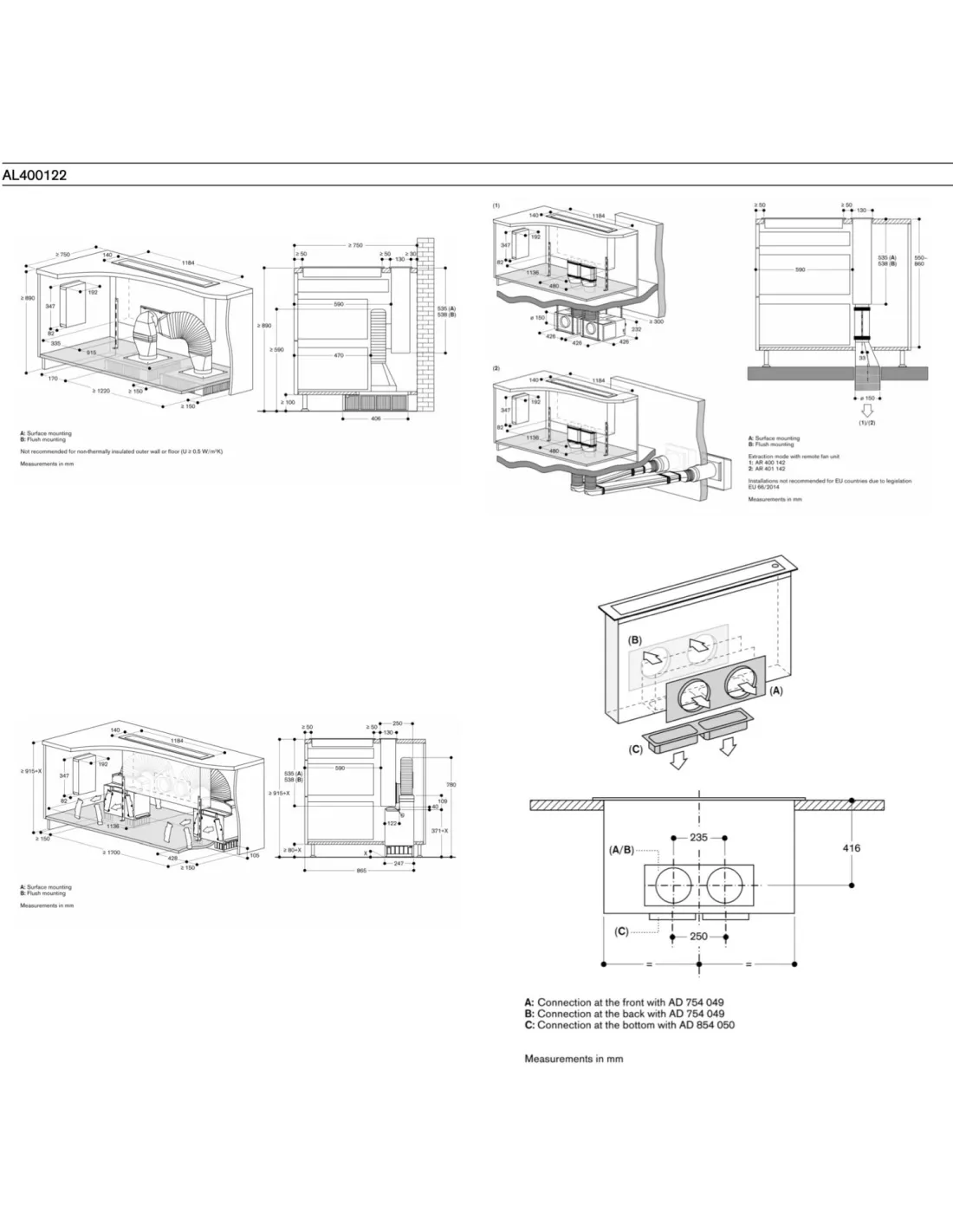

- The motor can be mounted on the front or back
Optional accessories:
Gaggenau
Made in Germany
- Height
- 540- min.850mm
- Extractor unit
- Built-in
- Surface finish:
- Stainless Steel
- Width
- 1156mm
- Depth
- 140mm
New
AL 400122
