ASKO W5096RG Steel Seal™ BLACK Front-Loadding washing machine

Programs

• Basic washing programs: Standard cotton, Time program, Mix/synthetic, Wool/hand wash, Jeans, Colored laundry, White laundry, Outerwear, Shirts/Blouses, Beddings/Towels, Down, Delicates, Waterproofing
• Special washing programs: Quick Pro, Steam refresh, Allergy program Synthetics, Allergy program Cotton, Eco 40–60 °C, SportWash
• Special functions: Drum cleaning, Spin, Drain, Rinse
• Wi-Fi washing programs: Swimwear, Underwear, Soft toys, Textile trainers, Baby clothes
• Modes: Normal — no program changes, Green — saves water and energy (program time slightly longer), Speed — more water and energy for shorter wash,
  Intensive — enhanced cleaning with more water and energy, temperature maintained at high level for longer

Additional options

• Temperature range: Cold — 90 °C
• Spin speed setting: Adjustable
• Max spin speed: 1600 rpm
• Delayed start: Up to 24 hours
• Settings: Prewash, No spin, High water level, Super rinse, Small load option, Steam disinfection, Add clothes, Delayed start

Construction and performance

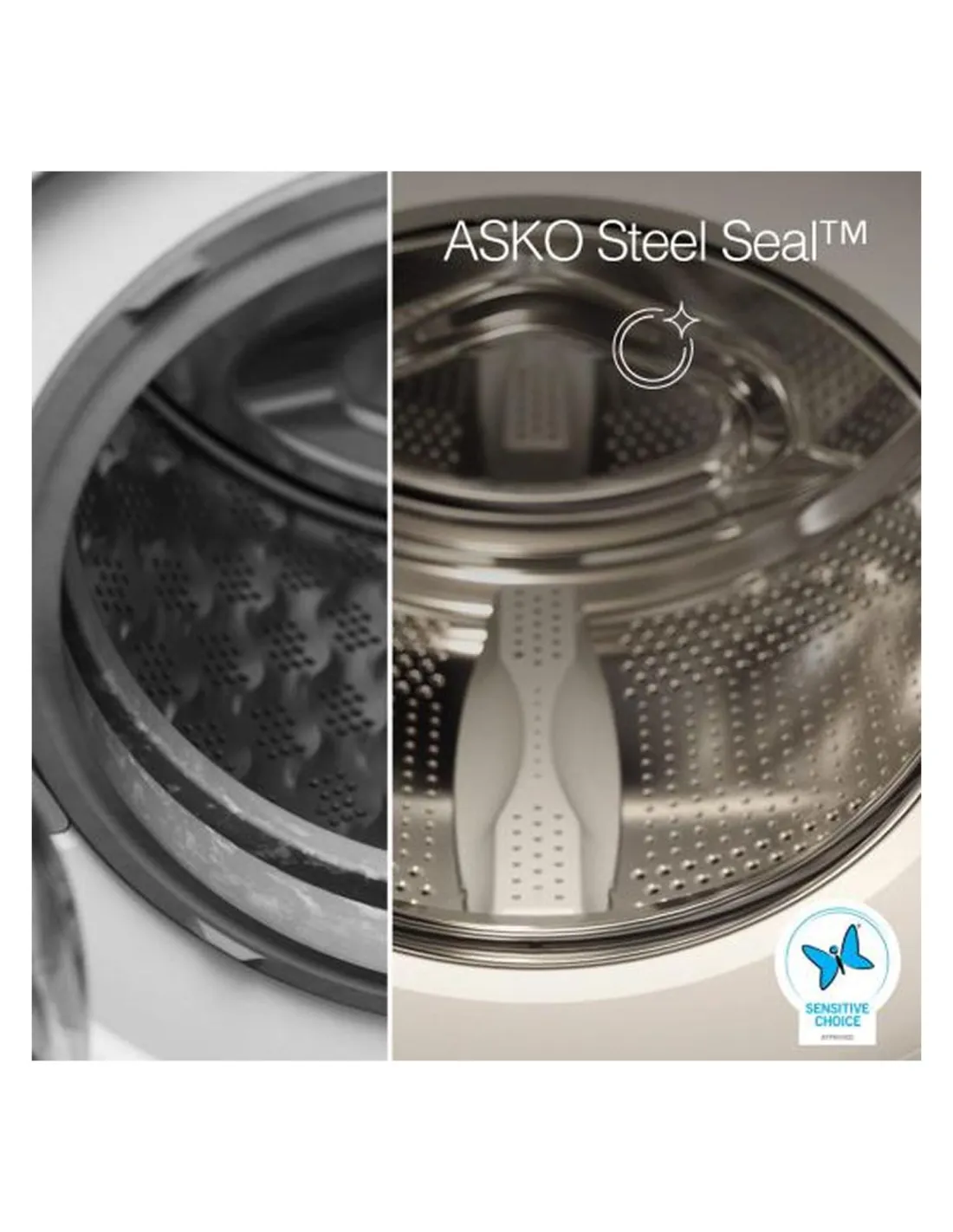

• Door sealing: Steel Seal™ — hygienic sealing without rubber bellow

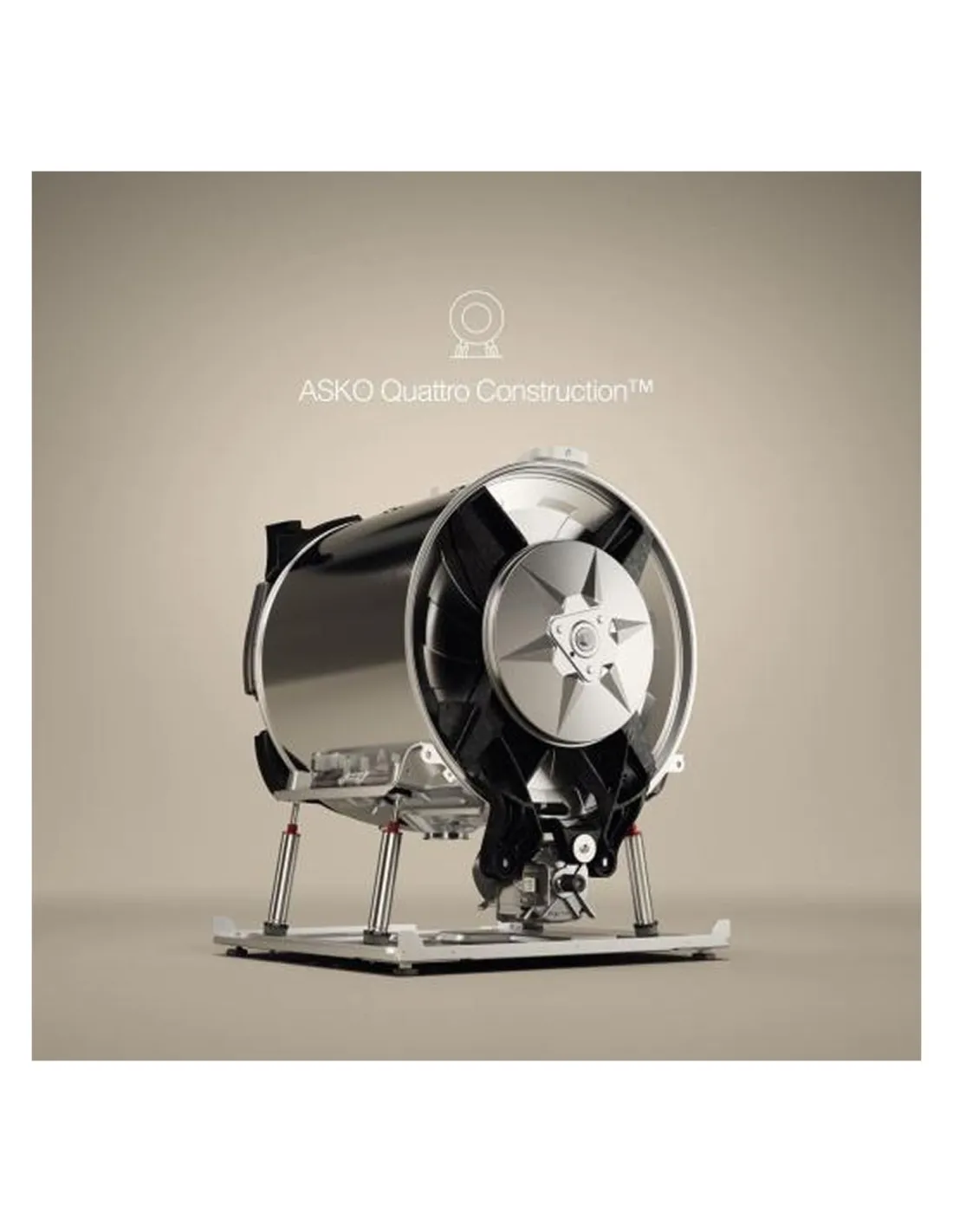

• Quattro Construction™: Yes, 2.0 Professional suspension with motorized door lock to minimize noise and vibration
• Outer drum: Stainless steel
• Inner drum: Stainless steel
• Counterweight material: Cast iron
• Counterweight: 17 kg
• Active Drum™ — gentle yet effective washing cycle: Yes
• Max +/- 1 °C temperature variation: Yes
• Drum size: 60 L
• Door hinge placement: Left
• Door opening diameter: 310 mm
• Door maximum opening angle: 110°
• Motor: Long-life, quiet brushless motor
• Shortest program time: 20 min

Use and flexibility

• Easy Close door: Yes
• Easy door opening: Yes
• Door lock: Motorized
• Stop flap for liquid detergent: Yes
• Automatic detergent drawer cleaning: Yes
• Remaining time indicator: Yes
• Load Light™ — drum illumination: Yes
• Automatic dosing system: Yes, with detergent and fabric conditioner
• Dose assist: Yes
• Wi-Fi: Yes
• ConnectLife: Monitoring and control via app
• Bluetooth: Yes
• Included accessory: Water connection adapter, discharge hose bow

Interaction and control

• Remaining time indication: Yes
• Type of display: TFT — full-colour touch display (interaction possible via jog dial as well)
• Transparent door cover/Double glass door: No
• Number of programmes: 28
• Create own program: Yes
• Available languages: Swedish, Slovenian, Slovak, Russian, Polish, Norwegian, Dutch, Latvian, Lithuanian, Japanese, Italian, Croatian, French, F
  innish, Estonian, Spanish, English, German, Danish, Czech, AU English, Portuguese, Ukrainian, US English

Design and integration

• Main colour of product: Graphite black
• Easy mounting of ASKO dryer on top of the washer: Yes
• Loading type: Front load
• Adjustable feet: 10 mm

Safety and maintenance

• Waterproof bottom plate with leakage detection: Yes
• Maximized water inlet time: Yes
• Aqua safe system: Yes, with bottom sensor
• Water inlet hose: Aqua stop, shuts off water in case of leak
• Drain system: Anti Block™ — self-cleaning drain pump
• Overflow protection: Yes
• Emergency door opening function: Yes
• Child lock: Yes
• Unbalance detection: Yes, protects washer against harmful vibrations
• Draining capacity: 20 L/min
• Overheat protection: motor and electronics

Technical data

• Loading capacity: 9 kg
• Plug type: GB
• Connected load: 2200 W
• Voltage: 220–240 V
• Number of phases: 1
• Fuse: 13 A
• Frequency: 50 Hz
• Heater power: 2000 W
• Net weight: 90 kg
• Energy efficiency class: A
• Energy consumption per cycle for Eco 40–60 °C: 0.384 kWh
• Energy label program time: 211 min
• Noise spinning class: A
• Spinning performance class: A
• Water consumption per cycle for Eco 40–60 °C: 35 L
• Remaining moisture content: 44 %
• Water connection: 3/4" — can be connected to cold water
• Power consumption in off mode: 0.49 W
• Power consumption in standby mode: 0.49 W
• ISO 14001 certified manufacturing: Yes

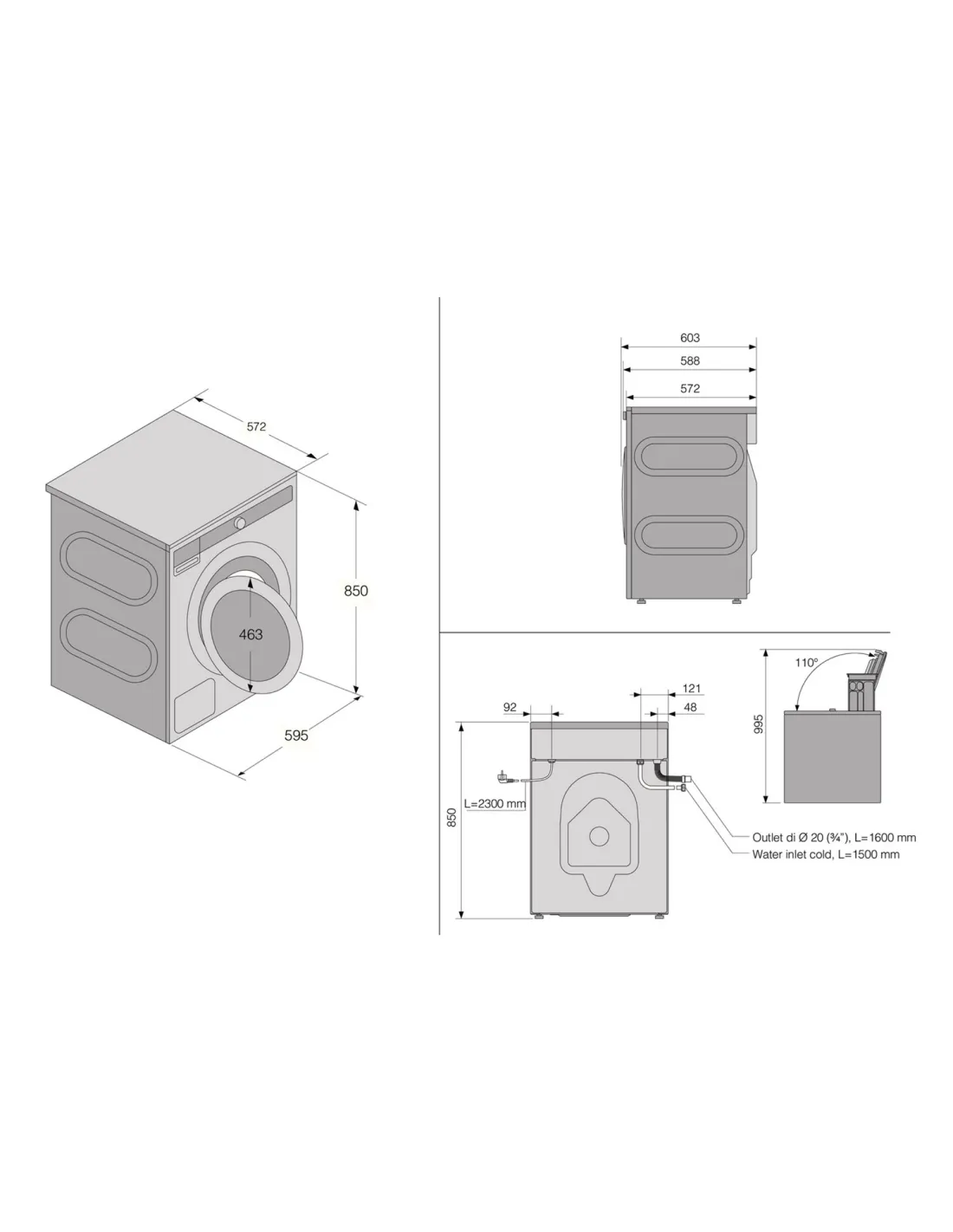

Dimensions

• Width: 595 mm
• Height: 850 mm
• Depth: 572 mm
• Depth with door open: 1014 mm
• Electrical cord length: 2100 mm
• Inlet hose length: 150 cm
• Outlet hose length: 160 cm

Logistic information

• Packaging width: 636 mm
• Packaging height: 920 mm
• Packaging depth: 661 mm
• Gross weight: 93.2 kg
• Packaging weight: 3.2 kg
• Product code: 745924
• EAN code: 3838782963797

ASKO
Made in EU
