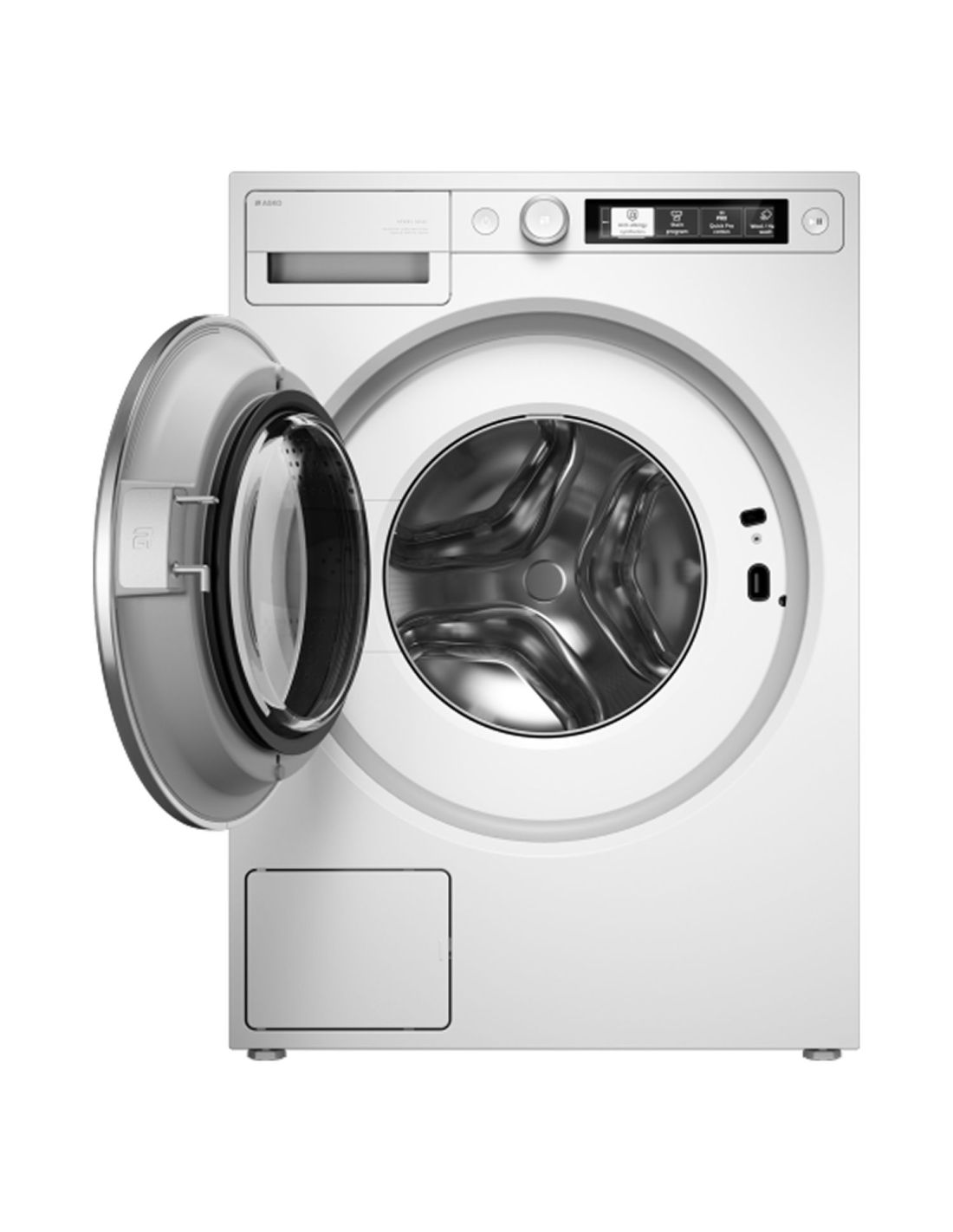

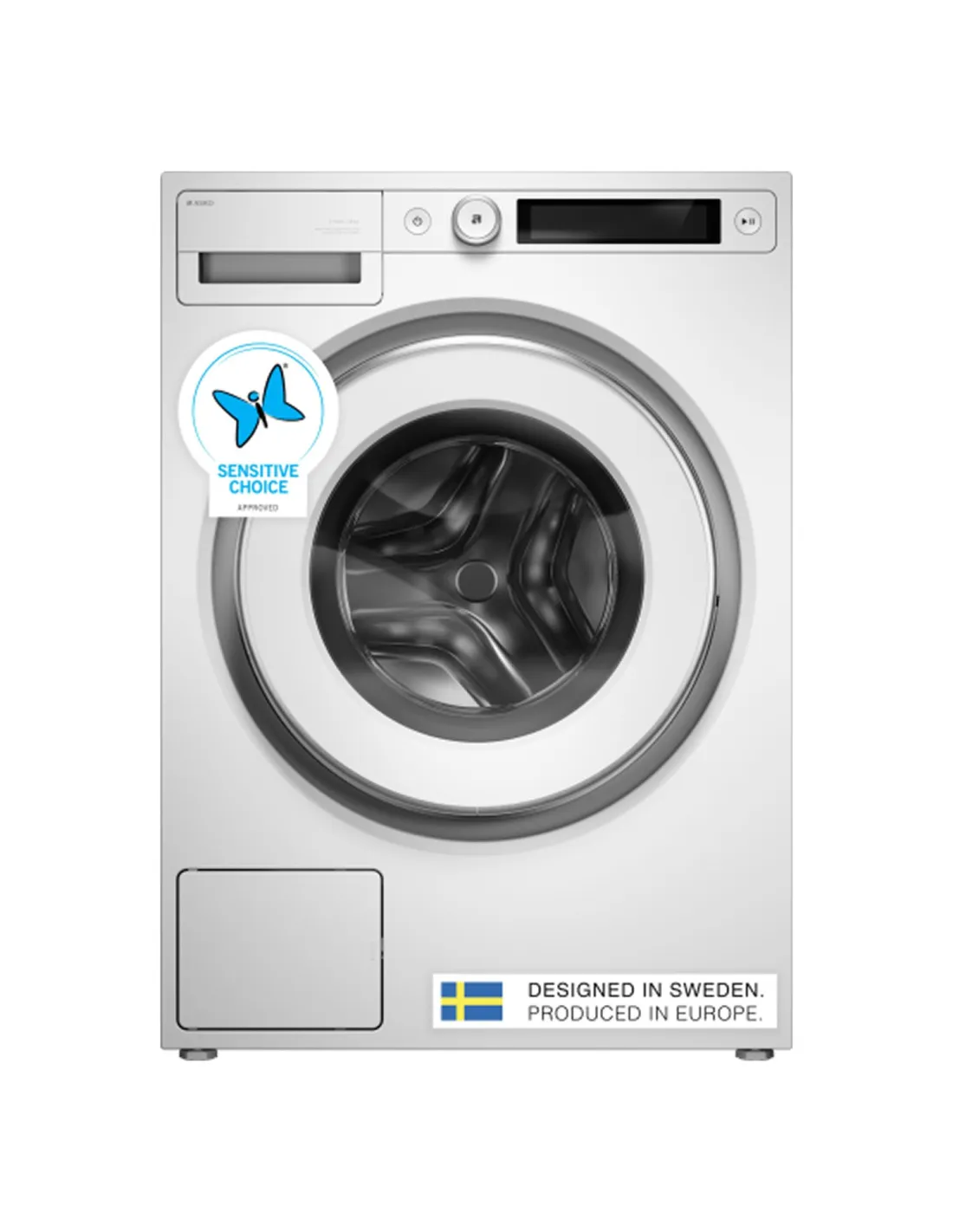

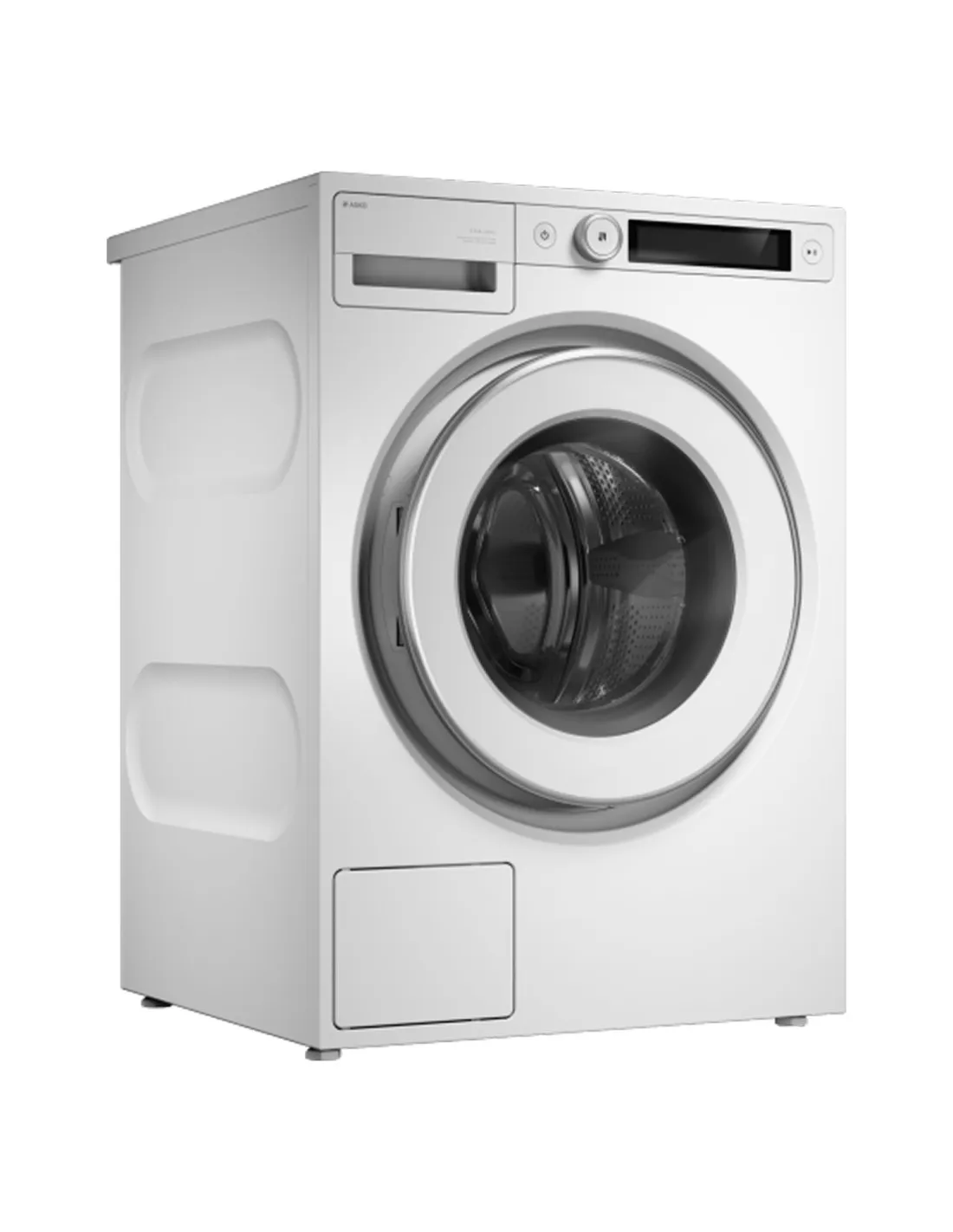

ASKO W5096RW Steel Seal™ White Front-Loadding washing machine

Programs

• Basic washing programs: Standard cotton, Time program, Mix/synthetic, Wool/hand wash, Jeans, Colored laundry, White laundry, Outerwear, Shirts/Blouses, Beddings/Towels, Down, Delicates, Waterproofing

• Special washing programs: Quick Pro, Steam refresh, Allergy program Synthetics, Allergy program Cotton, Eco 40–60 °C, SportWash

• Special functions: Drum cleaning, Spin, Drain, Rinse

• Wi-Fi washing programs: Swimwear, Underwear, Soft toys, Textile trainers, Baby clothes

• Modes: Normal — no program changes, Green — saves water and energy (program time slightly longer), Speed — more water and energy for shorter wash, Intensive — enhanced cleaning with more water and energy, temperature maintained at high level for longer

Additional options

• Temperature range: Cold — 90 °C

• Spin speed setting: Adjustable

• Max spin speed: 1600 rpm

• Delayed start: Up to 24 hours

• Settings: Prewash, No spin, High water level, Super rinse, Small load option, Steam disinfection, Add clothes, Delayed start

Construction and performance

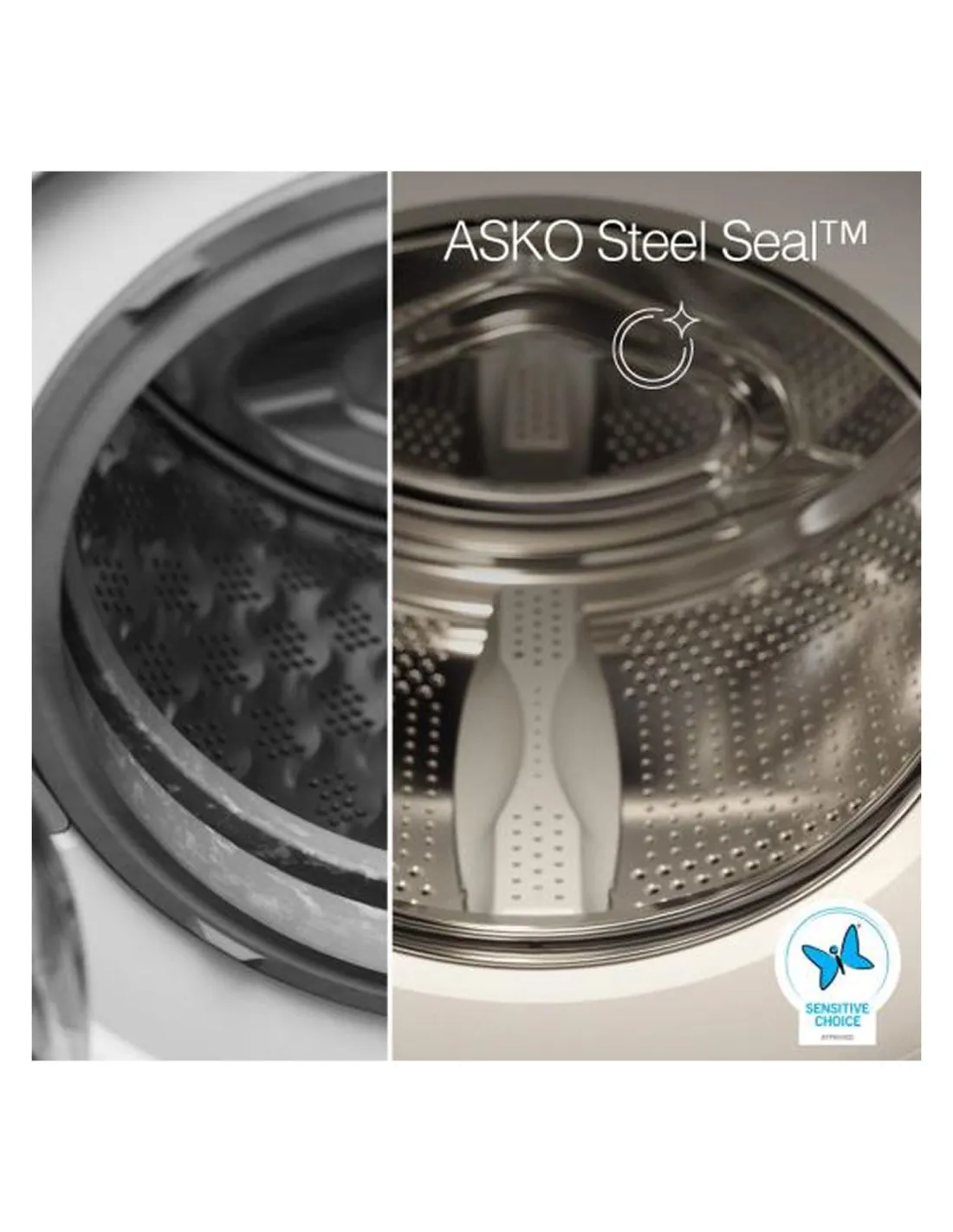

• Door sealing: Steel Seal™ — hygienic sealing without rubber bellow

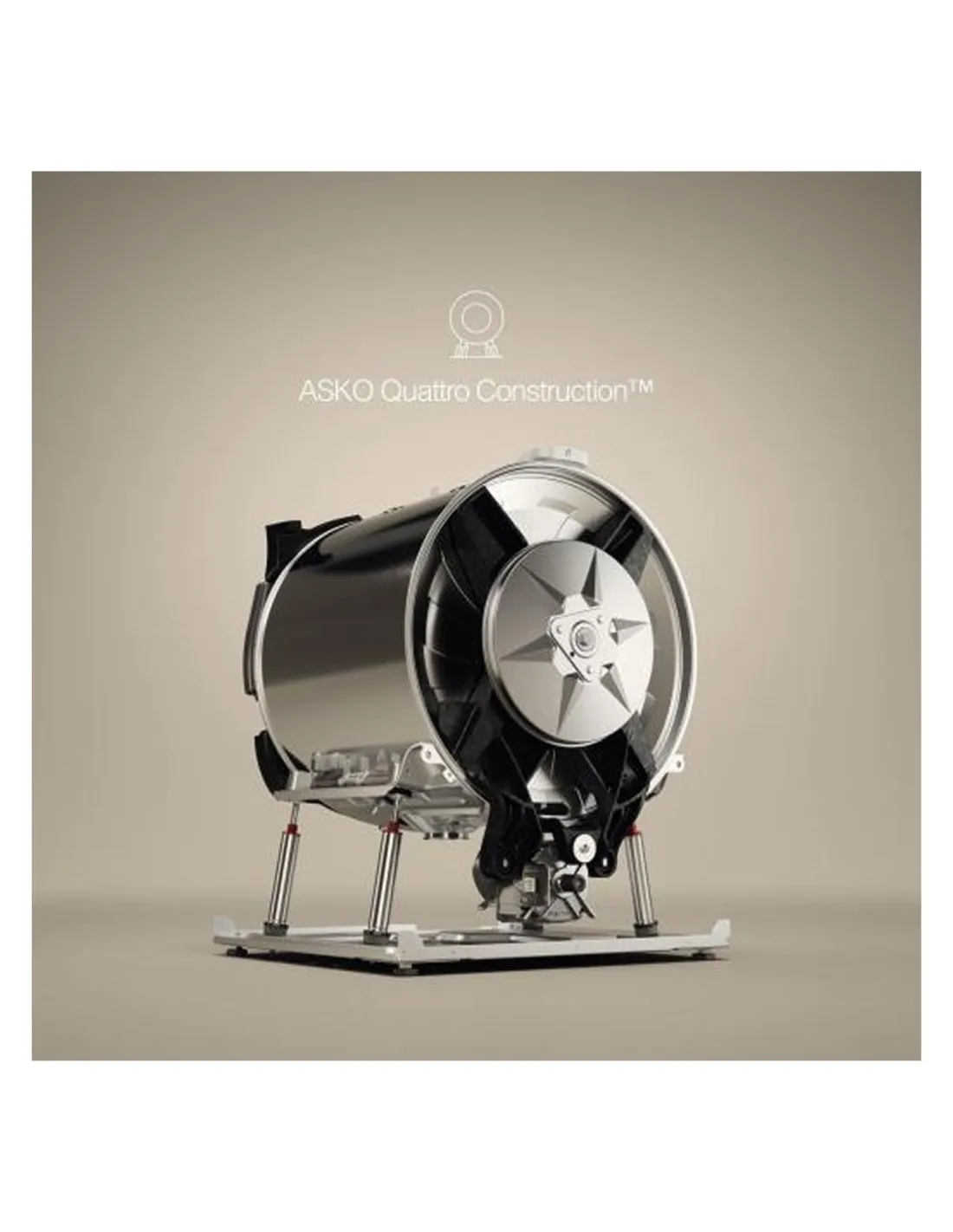

• Quattro Construction™: Yes, 2.0 Professional suspension with motorized door lock to minimize noise and vibration

• Outer drum: Stainless steel

• Inner drum: Stainless steel

• Counterweight material: Cast iron

• Counterweight: 17 kg

• Active Drum™ — gentle yet effective washing cycle: Yes

• Max +/- 1 °C temperature variation: Yes

• Drum size: 60 L

• Door hinge placement: Left

• Door opening diameter: 310 mm

• Door maximum opening angle: 110°

• Motor: Long-life, quiet brushless motor

• Shortest program time: 20 min

Use and flexibility

• Easy Close door: Yes

• Easy door opening: Yes

• Door lock: Motorized

• Stop flap for liquid detergent: Yes

• Automatic detergent drawer cleaning: Yes

• Remaining time indicator: Yes

• Load Light™ — drum illumination: Yes

• Automatic dosing system: Yes, with detergent and fabric conditioner

• Dose assist: Yes

• Wi-Fi: Yes

• ConnectLife: Monitoring and control via app

• Bluetooth: Yes

• Included accessory: Water connection adapter, discharge hose bow

Interaction and control

• Remaining time indication: Yes

• Type of display: TFT — full-colour touch display (interaction possible via jog dial as well)

• Transparent door cover/Double glass door: No

• Number of programmes: 28

• Create own program: Yes

• Available languages: Swedish, Slovenian, Slovak, Russian, Polish, Norwegian, Dutch, Latvian, Lithuanian, Japanese, Italian, Croatian, French, Finnish, Estonian, Spanish, English, German, Danish, Czech, AU English, Portuguese, Ukrainian, US English

Design and integration

• Main colour of product: Graphite black

• Easy mounting of ASKO dryer on top of the washer: Yes

• Loading type: Front load

• Adjustable feet: 10 mm

Safety and maintenance

• Waterproof bottom plate with leakage detection: Yes

• Maximized water inlet time: Yes

• Aqua safe system: Yes, with bottom sensor

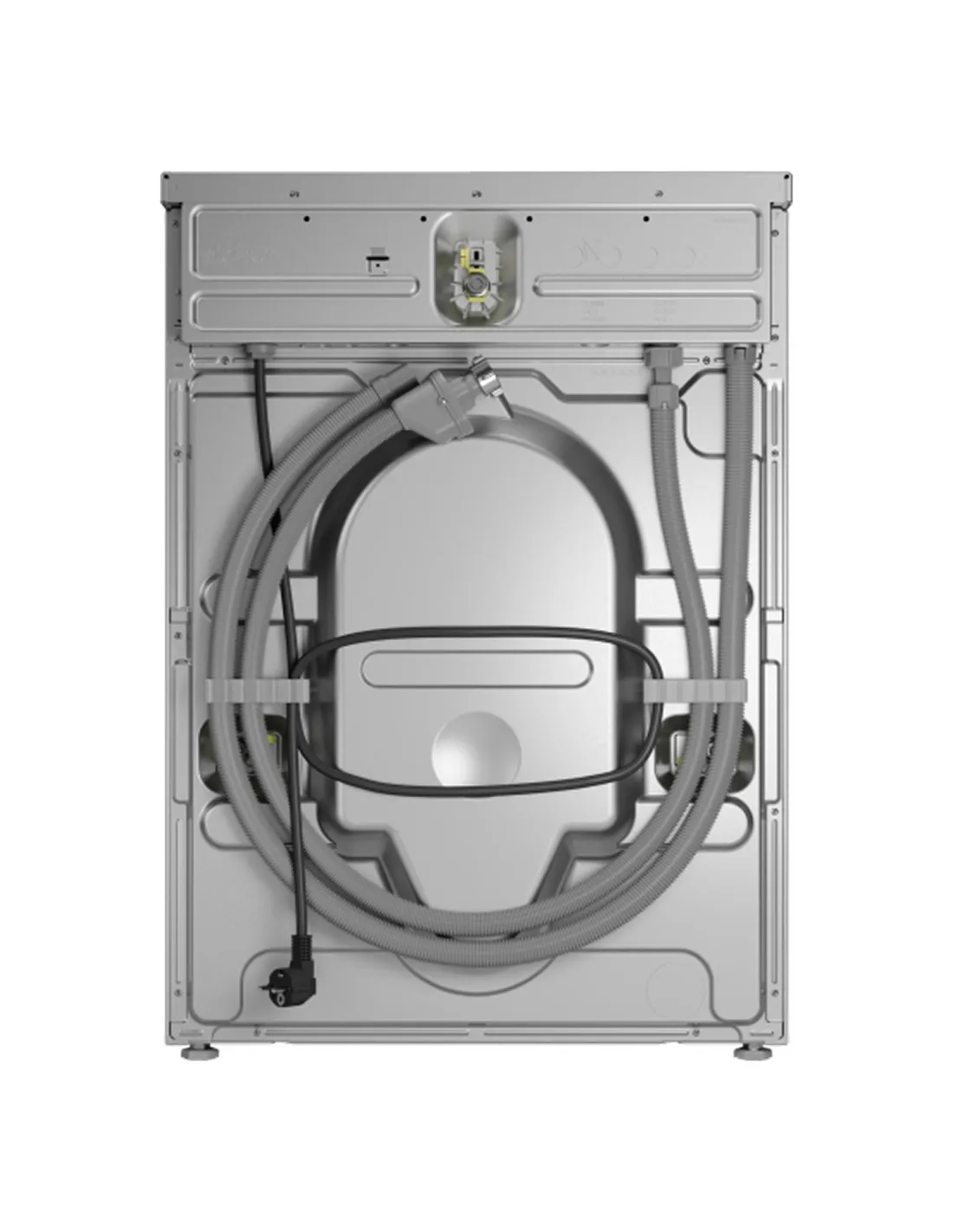

• Water inlet hose: Aqua stop, shuts off water in case of leak

• Drain system: Anti Block™ — self-cleaning drain pump

• Overflow protection: Yes

• Emergency door opening function: Yes

• Child lock: Yes

• Unbalance detection: Yes, protects washer against harmful vibrations

• Draining capacity: 20 L/min

• Overheat protection: motor and electronics

Technical data

• Loading capacity: 9 kg

• Plug type: GB

• Connected load: 2200 W

• Voltage: 220–240 V

• Number of phases: 1

• Fuse: 13 A

• Frequency: 50 Hz

• Heater power: 2000 W

• Net weight: 90 kg

• Energy efficiency class: A

• Energy consumption per cycle for Eco 40–60 °C: 0.384 kWh

• Energy label program time: 211 min

• Noise spinning class: A

• Spinning performance class: A

• Water consumption per cycle for Eco 40–60 °C: 35 L

• Remaining moisture content: 44 %

• Water connection: 3/4" — can be connected to cold water

• Power consumption in off mode: 0.49 W

• Power consumption in standby mode: 0.49 W

• ISO 14001 certified manufacturing: Yes

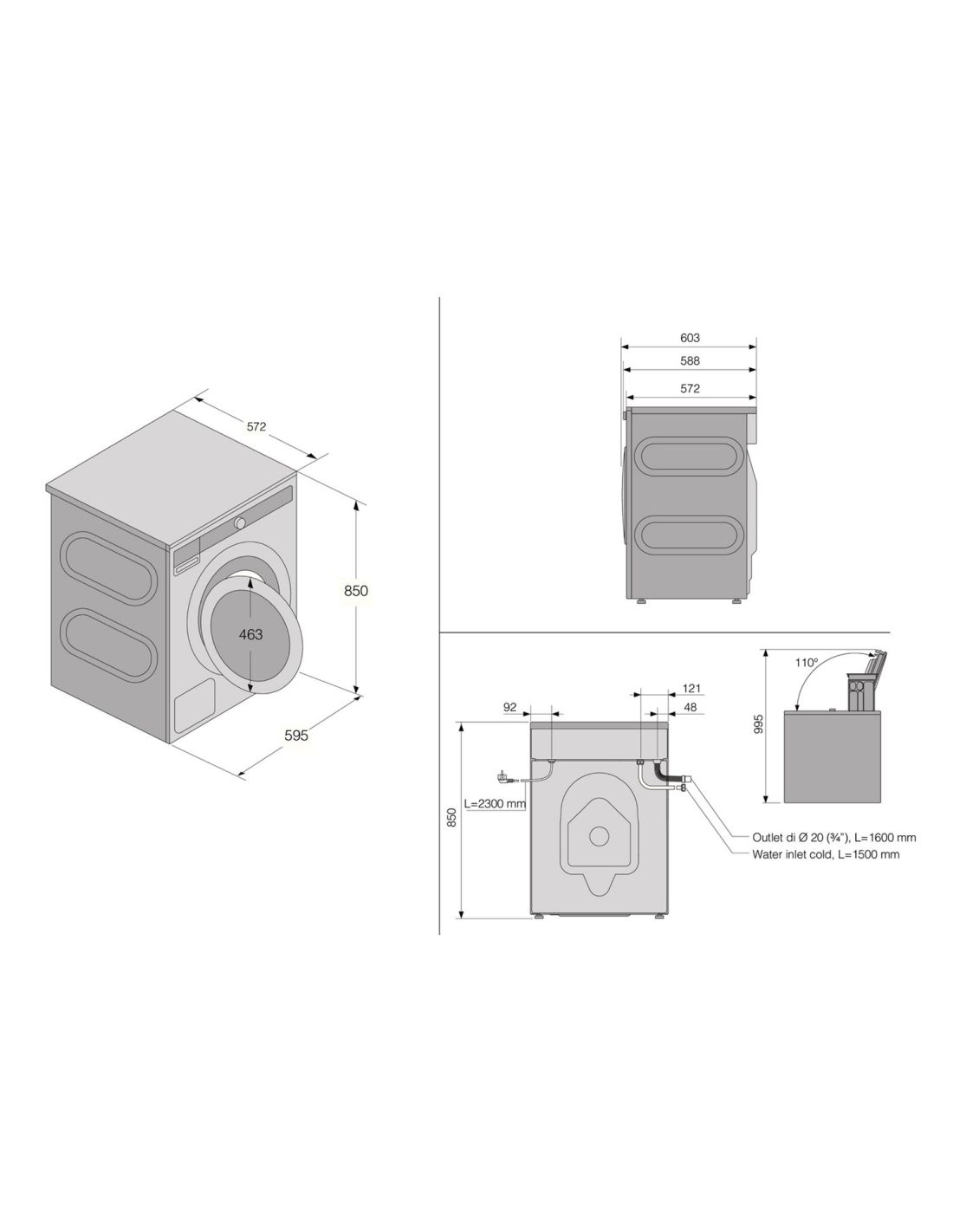

Dimensions

• Width: 595 mm

• Height: 850 mm

• Depth: 572 mm

• Depth with door open: 1014 mm

• Electrical cord length: 2100 mm

• Inlet hose length: 150 cm

• Outlet hose length: 160 cm

Logistic information

• Packaging width: 636 mm

• Packaging height: 920 mm

• Packaging depth: 661 mm

• Gross weight: 93.2 kg

• Packaging weight: 3.2 kg

• Product code: 745917

• EAN code: 3838782961090
